Outgoing Call - CometChat Docs

AI Agent Component Spec

{
  "component": "CometChatOutgoingCall",
  "package": "com.cometchat.chatuikit.calls.outgoingcall",
  "xmlElement": "<com.cometchat.chatuikit.calls.outgoingcall.CometChatOutgoingCall />",
  "description": "Full-screen outgoing call UI with recipient avatar, name, call status, and end-call button.",
  "primaryOutput": {
    "method": "setOnEndCallClick",
    "type": "OnClick"
  },
  "methods": {
    "data": {
      "setCall": {
        "type": "Call",
        "note": "Sets the call object and extracts the receiver User automatically"
      },
      "setUser": {
        "type": "User",
        "note": "Sets the user directly (uid, name, avatar required)"
      }
    },
    "callbacks": {
      "setOnEndCallClick": "OnClick",
      "setOnError": "OnError"
    },
    "functionality": {
      "disableSoundForCall": { "type": "boolean", "default": "false" },
      "setCustomSoundForCalls": { "type": "@RawRes int", "default": "SDK default" }
    },
    "viewSlots": {
      "setTitleView": "Function2<Context, Call, View> — title text area",
      "setSubtitleView": "Function2<Context, Call, View> — subtitle text area",
      "setAvatarView": "Function2<Context, Call, View> — avatar / profile picture area",
      "setEndCallView": "Function2<Context, Call, View> — end-call button area"
    },
    "advanced": {
      "setCallSettingsBuilder": "CometChatCalls.CallSettingsBuilder — ongoing call configuration",
      "getViewModel": "OutgoingViewModel — internal ViewModel access"
    },
    "style": {
      "setStyle": {
        "type": "@StyleRes int",
        "parent": "CometChatOutgoingCallStyle"
      }
    }
  },
  "events": [
    {
      "name": "CometChatCallEvents.ccCallAccepted",
      "payload": "Call",
      "description": "Outgoing call was accepted by the receiver"
    },
    {
      "name": "CometChatCallEvents.ccCallRejected",
      "payload": "Call",
      "description": "Outgoing call was rejected by the receiver"
    }
  ],
  "sdkListeners": [
    "onOutgoingCallAccepted",
    "onOutgoingCallRejected"
  ]
}

Where It Fits

CometChatOutgoingCall is a call-initiation component. It renders the outgoing call screen and transitions to the ongoing call screen when the receiver accepts. Wire it to CometChatCallEvents to handle call-accepted and call-rejected transitions.

Kotlin
Java

CallActivity.kt

class CallActivity : AppCompatActivity() {

    private lateinit var outgoingCall: CometChatOutgoingCall

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_call)

        outgoingCall = findViewById(R.id.outgoing_call)
        outgoingCall.setCall(call) // pass the Call object from CometChat SDK
    }
}

CallActivity.java

public class CallActivity extends AppCompatActivity {

    private CometChatOutgoingCall outgoingCall;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_call);

        outgoingCall = findViewById(R.id.outgoing_call);
        outgoingCall.setCall(call); // pass the Call object from CometChat SDK
    }
}

Quick Start

Add the component to your layout XML:

layout_activity.xml

<com.cometchat.chatuikit.calls.outgoingcall.CometChatOutgoingCall
    android:id="@+id/outgoing_call"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

Prerequisites: CometChat SDK initialized with CometChatUIKit.init(), a user logged in, and the cometchat-chat-uikit-android dependency added. To add programmatically in an Activity:

Kotlin
Java

YourActivity.kt

private lateinit var cometchatOutgoingCall: CometChatOutgoingCall

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)

    cometchatOutgoingCall = CometChatOutgoingCall(this)
    cometchatOutgoingCall.setCall(call) // Required — set the Call object
    setContentView(cometchatOutgoingCall)
}

YourActivity.java

CometChatOutgoingCall cometchatOutgoingCall;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatOutgoingCall = new CometChatOutgoingCall(this);
    cometchatOutgoingCall.setCall(call); // Required — set the Call object
    setContentView(cometchatOutgoingCall);
}

Or in a Fragment:

Kotlin
Java

YourFragment.kt

private lateinit var cometchatOutgoingCall: CometChatOutgoingCall

override fun onCreateView(
    inflater: LayoutInflater,
    container: ViewGroup?,
    savedInstanceState: Bundle?
): View {
    cometchatOutgoingCall = CometChatOutgoingCall(requireContext())
    cometchatOutgoingCall.setCall(call) // Required — set the Call object
    return cometchatOutgoingCall
}

YourFragment.java

CometChatOutgoingCall cometchatOutgoingCall;

@Override
public View onCreateView(@NonNull LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
    cometchatOutgoingCall = new CometChatOutgoingCall(requireContext());
    cometchatOutgoingCall.setCall(call); // Required — set the Call object
    return cometchatOutgoingCall;
}

Actions and Events

Callback Methods

`setOnEndCallClick`

Fires when the end-call button is tapped. Default: cancels the outgoing call via the SDK.

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setOnEndCallClick(OnClick {
    // Your custom end-call logic
})

YourActivity.java

cometchatOutgoingCall.setOnEndCallClick(new OnClick() {
    @Override
    public void onClick() {
        // Your custom end-call logic
    }
});

What this does: Replaces the default end-call button behavior. When the user taps the end-call button, your custom OnClick lambda executes instead of the built-in call cancellation.

`setOnError`

Fires on internal errors (network failure, auth issue, SDK exception).

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setOnError(object : OnError {
    override fun onError(context: Context, e: CometChatException) {
        // Your error handling logic
    }
})

YourActivity.java

cometchatOutgoingCall.setOnError(new OnError() {
    @Override
    public void onError(CometChatException cometchatException) {
        // Your error handling logic
    }
});

What this does: Registers an error callback on the CometChatOutgoingCall instance. When an error occurs within the component, the onError method is invoked with the CometChatException containing error details.

Verify: After setting an action callback, trigger the corresponding user interaction (tap end-call, cause an error) and confirm your custom logic executes instead of the default behavior.

Global UI Events (CometChatCallEvents)

CometChatCallEvents emits events subscribable from anywhere in the application. Add a listener and remove it when no longer needed.

Event	Fires when	Payload
`ccCallAccepted`	The outgoing call is accepted by the receiver	`Call`
`ccCallRejected`	The outgoing call is rejected by the receiver	`Call`

Kotlin
Java

Add Listener

CometChatCallEvents.addListener("LISTENER_TAG", object : CometChatCallEvents() {
    override fun ccCallAccepted(call: Call) {
        super.ccCallAccepted(call)
    }

    override fun ccCallRejected(call: Call) {
        super.ccCallRejected(call)
    }
})

Remove Listener

CometChatCallEvents.removeListener("LISTENER_TAG")

Add Listener

CometChatCallEvents.addListener("LISTENER_TAG", new CometChatCallEvents() {
    @Override
    public void ccCallAccepted(Call call) {
        super.ccCallAccepted(call);
    }

    @Override
    public void ccCallRejected(Call call) {
        super.ccCallRejected(call);
    }
});

Remove Listener

CometChatCallEvents.removeListener("LISTENER_TAG");

SDK Events

The component listens to SDK call events internally. No manual attachment needed unless additional side effects are required.

SDK Listener	Internal behavior
`onOutgoingCallAccepted`	Transitions to the ongoing call screen
`onOutgoingCallRejected`	Finishes the activity or invokes the back-press handler

Functionality

Small functional customizations for sound and call behavior.

Method	Description	Code
`disableSoundForCall`	Enables or disables the outgoing call ringtone	`.disableSoundForCall(true);`
`setCustomSoundForCalls`	Sets a custom sound resource for the outgoing call ringtone	`.setCustomSoundForCalls(R.raw.custom_ringtone);`

Verify: After calling disableSoundForCall(true), initiate an outgoing call and confirm no ringtone plays.

Custom View Slots

Each slot replaces a section of the default UI. All view slots accept a Function2<Context, Call, View> that receives the current context and Call object and returns a custom View.

Slot	Method	Replaces
Title view	`setTitleView(Function2<Context, Call, View>)`	Name / title text
Subtitle view	`setSubtitleView(Function2<Context, Call, View>)`	Subtitle text (e.g., “Calling…”)
Avatar view	`setAvatarView(Function2<Context, Call, View>)`	Avatar / profile picture area
End-call view	`setEndCallView(Function2<Context, Call, View>)`	End-call button

`setTitleView`

Replace the name / title text area.

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setTitleView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        return null
    }
})

YourActivity.java

cometchatOutgoingCall.setTitleView((context, call) -> {
    return null;
});

What this does: Registers a callback that receives the Context and Call object and returns a custom View to replace the default title area on the outgoing call screen.

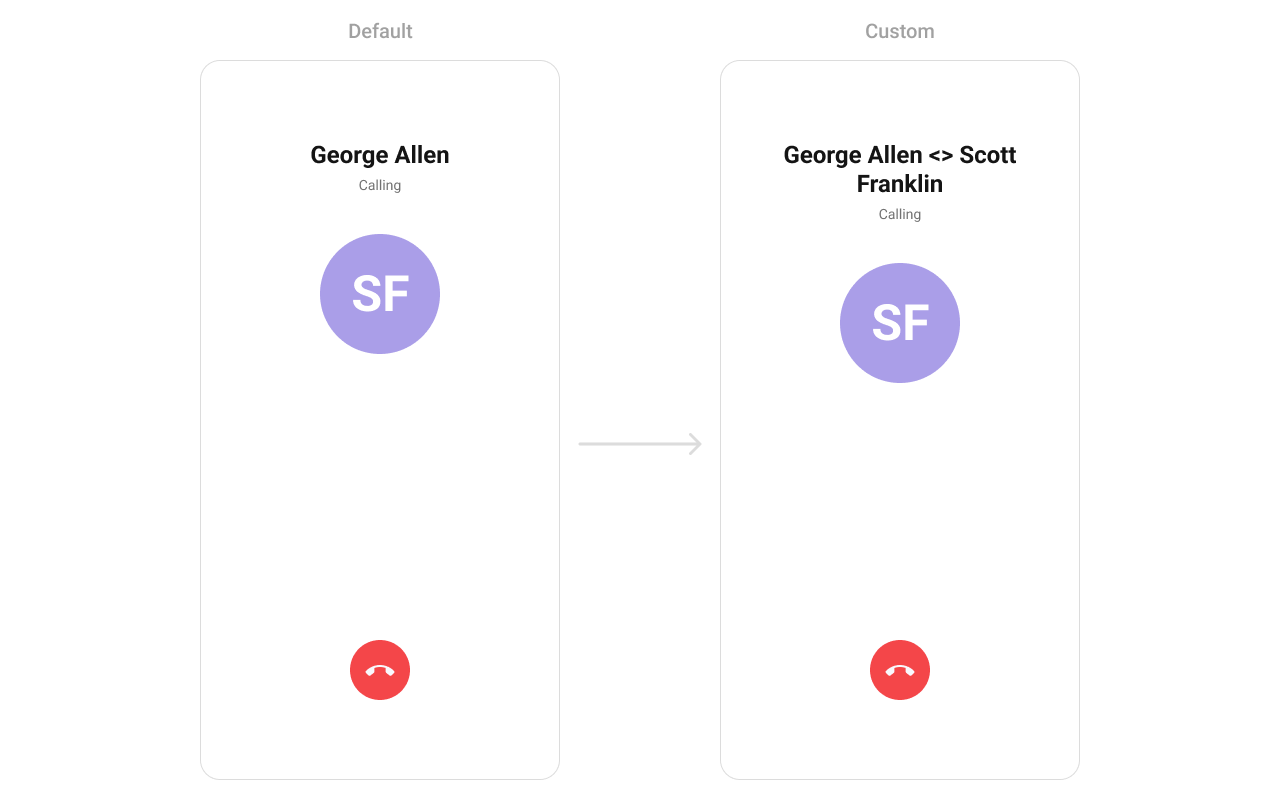

Example with sender and receiver names:

Create a custom_title_view.xml layout:

custom_title_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:gravity="center_vertical"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/call_iv"
        android:layout_width="@dimen/cometchat_24dp"
        android:layout_height="@dimen/cometchat_24dp" />

    <TextView
        android:id="@+id/title_text"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textAlignment="center"
        android:layout_marginStart="8dp"
        android:textAppearance="?attr/cometchatTextAppearanceCaption1Regular"
        android:textColor="?attr/cometchatTextColorPrimary" />
</LinearLayout>

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setTitleView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        val titleView: View = LayoutInflater.from(context).inflate(R.layout.custom_title_view, null)
        val tvTitle = titleView.findViewById<TextView>(R.id.title_text)
        val user = call?.callReceiver as User
        tvTitle.text = user.name + " <> " + call.sender.uid
        return titleView
    }
})

YourActivity.java

cometchatOutgoingCall.setTitleView(new Function2<Context, Call, View>() {
    @Override
    public View apply(Context context, Call call) {
        View titleView = LayoutInflater.from(context).inflate(R.layout.custom_title_view, null);
        TextView tvTitle = titleView.findViewById(R.id.title_text);
        User user = (User) call.getCallReceiver();
        tvTitle.setText(user.getName() + " <> " + call.getSender().getUid());
        return titleView;
    }
});

What this does: Inflates the custom_title_view layout, retrieves the call receiver’s name and the sender’s UID, and sets the title text to display them separated by " <> ".

`setSubtitleView`

Replace the subtitle text below the title.

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setSubtitleView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        return null
    }
})

YourActivity.java

cometchatOutgoingCall.setSubtitleView((context, call) -> {
    return null;
});

What this does: Registers a callback that receives the Context and Call object and returns a custom View to replace the default subtitle area on the outgoing call screen.

Example with call-type icon and “Calling…” text:

Create a custom_subtitle_view.xml layout:

custom_subtitle_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_gravity="center_vertical"
    android:gravity="center_horizontal"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/call_iv"
        android:layout_width="@dimen/cometchat_24dp"
        android:layout_height="@dimen/cometchat_24dp"
        android:layout_gravity="center_horizontal" />

    <TextView
        android:id="@+id/subtitle_text"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        android:layout_marginStart="8dp"
        android:textAlignment="center"
        android:textAppearance="?attr/cometchatTextAppearanceCaption1Regular"
        android:textColor="?attr/cometchatTextColorPrimary" />
</LinearLayout>

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setSubtitleView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        val subtitleView: View = LayoutInflater.from(context).inflate(R.layout.custom_subtitle_view, null)
        val tvTitle = subtitleView.findViewById<TextView>(R.id.subtitle_text)
        tvTitle.text = "Calling...."
        val ivCall = subtitleView.findViewById<ImageView>(R.id.call_iv)

        if (CometChatConstants.CALL_TYPE_AUDIO == call?.type) {
            ivCall.setImageResource(com.cometchat.chatuikit.R.drawable.cometchat_ic_call_voice)
        } else {
            ivCall.setImageResource(com.cometchat.chatuikit.R.drawable.cometchat_ic_call_video)
        }

        val layoutParams = LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        )
        layoutParams.gravity = Gravity.CENTER_VERTICAL
        subtitleView.layoutParams = layoutParams
        return subtitleView
    }
})

YourActivity.java

cometchatOutgoingCall.setSubtitleView(new Function2<Context, Call, View>() {
    @Override
    public View apply(Context context, Call call) {
        View subtitleView = LayoutInflater.from(context).inflate(R.layout.custom_subtitle_view, null);
        TextView tvTitle = subtitleView.findViewById(R.id.subtitle_text);
        tvTitle.setText("Calling....");
        ImageView ivCall = subtitleView.findViewById(R.id.call_iv);

        if (CometChatConstants.CALL_TYPE_AUDIO.equals(call.getType())) {
            ivCall.setImageResource(com.cometchat.chatuikit.R.drawable.cometchat_ic_call_voice);
        } else {
            ivCall.setImageResource(com.cometchat.chatuikit.R.drawable.cometchat_ic_call_video);
        }

        LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        );
        layoutParams.gravity = Gravity.CENTER_VERTICAL;
        subtitleView.setLayoutParams(layoutParams);
        return subtitleView;
    }
});

What this does: Inflates the custom_subtitle_view layout, sets the subtitle text to “Calling…”, and displays a voice call icon if the call type is CALL_TYPE_AUDIO, or a video call icon otherwise.

`setAvatarView`

Replace the avatar / profile picture area.

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setAvatarView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        return null
    }
})

YourActivity.java

cometchatOutgoingCall.setAvatarView((context, call) -> {
    return null;
});

What this does: Registers a callback that receives the Context and Call object and returns a custom View to replace the default avatar area on the outgoing call screen.

Example with admin badge:

Create a custom_avatar_view.xml layout:

custom_avatar_view.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_centerInParent="true"
    android:layout_gravity="center_horizontal"
    android:gravity="center_horizontal"
    android:orientation="vertical">

    <com.cometchat.chatuikit.shared.views.avatar.CometChatAvatar
        android:id="@+id/avatar"
        android:layout_width="@dimen/cometchat_100dp"
        android:layout_height="@dimen/cometchat_100dp"
        android:layout_marginTop="@dimen/cometchat_40dp" />

    <View
        android:id="@+id/batch_view"
        android:layout_width="@dimen/cometchat_100dp"
        android:layout_height="@dimen/cometchat_24dp"
        android:layout_below="@id/avatar"
        android:layout_marginTop="-10dp"
        android:background="@drawable/admin_batch" />

</RelativeLayout>

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setAvatarView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        val avatarView: View = LayoutInflater.from(context).inflate(R.layout.custom_avatar_view, null)
        val avatar = avatarView.findViewById<CometChatAvatar>(R.id.avatar)
        val user = call?.receiver as User
        avatar.setAvatar(user.uid, user.avatar)

        val layoutParams = LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        )
        layoutParams.gravity = Gravity.CENTER_VERTICAL
        avatarView.layoutParams = layoutParams
        return avatarView
    }
})

YourActivity.java

cometchatOutgoingCall.setAvatarView(new Function2<Context, Call, View>() {
    @Override
    public View apply(Context context, Call call) {
        View avatarView = LayoutInflater.from(context).inflate(R.layout.custom_avatar_view, null);
        CometChatAvatar avatar = avatarView.findViewById(R.id.avatar);
        User user = (User) call.getReceiver();
        avatar.setAvatar(user.getUid(), user.getAvatar());

        LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        );
        layoutParams.gravity = Gravity.CENTER_VERTICAL;
        avatarView.setLayoutParams(layoutParams);
        return avatarView;
    }
});

What this does: Inflates the custom_avatar_view layout, retrieves the call receiver’s UID and avatar URL, sets them on the CometChatAvatar widget, and applies centered layout params.

`setEndCallView`

Replace the end-call button.

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setEndCallView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        return null
    }
})

YourActivity.java

cometchatOutgoingCall.setEndCallView((context, call) -> {
    return null;
});

What this does: Registers a callback that receives the Context and Call object and returns a custom View to replace the default end-call button on the outgoing call screen.

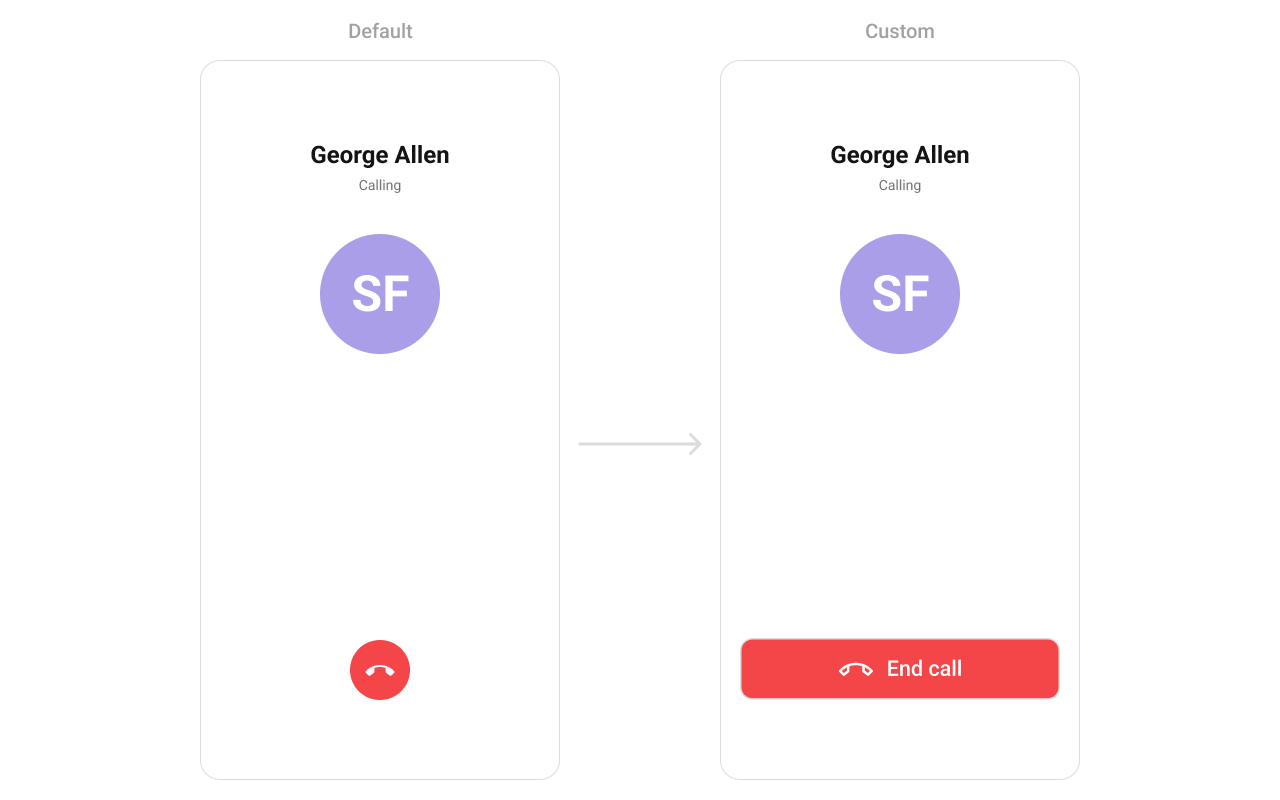

Example with custom end-call card:

Create an end_call_button.xml layout:

end_call_button.xml

<?xml version="1.0" encoding="utf-8"?>
<com.google.android.material.card.MaterialCardView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_marginStart="@dimen/cometchat_16dp"
    android:layout_marginEnd="@dimen/cometchat_16dp"
    app:cardBackgroundColor="?attr/cometchatErrorColor"
    app:cardCornerRadius="@dimen/cometchat_16dp"
    app:strokeColor="?attr/cometchatStrokeColorDark"
    app:strokeWidth="1dp">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="horizontal"
        android:padding="@dimen/cometchat_16dp">

        <ImageView
            android:id="@+id/end_call_iv"
            android:layout_width="@dimen/cometchat_30dp"
            android:layout_height="@dimen/cometchat_30dp"
            android:layout_gravity="center_vertical"
            android:src="@drawable/cometchat_ic_end_call"
            app:tint="?attr/cometchatColorWhite" />

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_gravity="center_vertical"
            android:layout_marginStart="@dimen/cometchat_16dp"
            android:text="End Call"
            android:textAppearance="?attr/cometchatTextAppearanceHeading4Regular"
            android:textColor="?attr/cometchatColorWhite" />
    </LinearLayout>

</com.google.android.material.card.MaterialCardView>

Kotlin
Java

YourActivity.kt

cometchatOutgoingCall.setEndCallView(object : Function2<Context?, Call?, View?> {
    override fun apply(context: Context?, call: Call?): View? {
        val endCallButtonView: View = LayoutInflater.from(context).inflate(R.layout.end_call_button, null)

        endCallButtonView.setOnClickListener { Toast.makeText(context, "End call clicked", Toast.LENGTH_SHORT).show() }
        val layoutParams = LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        )
        layoutParams.bottomMargin = Utils.convertDpToPx(context, 40)
        endCallButtonView.layoutParams = layoutParams
        return endCallButtonView
    }
})

YourActivity.java

cometchatOutgoingCall.setEndCallView(new Function2<Context, Call, View>() {
    @Override
    public View apply(Context context, Call call) {
        View endCallButtonView = LayoutInflater.from(context).inflate(R.layout.end_call_button, null);

        endCallButtonView.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(context, "End call clicked", Toast.LENGTH_SHORT).show();
            }
        });
        LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        );
        layoutParams.bottomMargin = Utils.convertDpToPx(context, 40);
        endCallButtonView.setLayoutParams(layoutParams);
        return endCallButtonView;
    }
});

What this does: Inflates the end_call_button layout, attaches a click listener that shows a toast message “End call clicked”, sets a 40dp bottom margin, and returns the custom end-call button view.

Verify: After setting any custom view slot, confirm the custom view renders in the correct position on the outgoing call screen and that the data binding populates correctly.

Common Patterns

Silent outgoing call

Kotlin
Java

cometchatOutgoingCall.disableSoundForCall(true)

cometchatOutgoingCall.disableSoundForCall(true);

Custom ringtone

Kotlin
Java

cometchatOutgoingCall.setCustomSoundForCalls(R.raw.custom_ringtone)

cometchatOutgoingCall.setCustomSoundForCalls(R.raw.custom_ringtone);

Custom call settings for ongoing call

Kotlin
Java

val callSettingsBuilder = CometChatCalls.CallSettingsBuilder(this, true)
    .setDefaultAudioMode("SPEAKER")
cometchatOutgoingCall.setCallSettingsBuilder(callSettingsBuilder)

CometChatCalls.CallSettingsBuilder callSettingsBuilder = new CometChatCalls.CallSettingsBuilder(this, true)
    .setDefaultAudioMode("SPEAKER");
cometchatOutgoingCall.setCallSettingsBuilder(callSettingsBuilder);

Kotlin
Java

cometchatOutgoingCall.setOnEndCallClick(OnClick {
    finish() // navigate back instead of default SDK rejection
})

cometchatOutgoingCall.setOnEndCallClick(() -> {
    finish(); // navigate back instead of default SDK rejection
});

Advanced Methods

`setCall`

Sets the call object and extracts the receiver User automatically. Use this when you have a Call object from the SDK.

Kotlin
Java

cometChatOutgoingCall.setCall(call)

cometChatOutgoingCall.setCall(call);

setCall internally extracts the receiver from the Call object and calls setUser with it. The component then displays the receiver’s name and avatar.

`setUser`

Sets the user directly when you don’t have a Call object. The uid, name, and avatar fields are required.

Kotlin
Java

cometChatOutgoingCall.setUser(user)

cometChatOutgoingCall.setUser(user);

`setCallSettingsBuilder`

Configures the ongoing call settings (audio mode, video settings, etc.) that apply once the call is accepted.

Kotlin
Java

val callSettingsBuilder = CometChatCalls.CallSettingsBuilder(this, true)
    .setIsAudioOnly(true)
cometChatOutgoingCall.setCallSettingsBuilder(callSettingsBuilder)

CometChatCalls.CallSettingsBuilder callSettingsBuilder = new CometChatCalls.CallSettingsBuilder(this, true)
    .setIsAudioOnly(true);
cometChatOutgoingCall.setCallSettingsBuilder(callSettingsBuilder);

`setCustomSoundForCalls`

Sets a custom ringtone sound that plays while the outgoing call is ringing.

Kotlin
Java

cometChatOutgoingCall.setCustomSoundForCalls(R.raw.custom_ringtone)

cometChatOutgoingCall.setCustomSoundForCalls(R.raw.custom_ringtone);

`disposeObservers`

Removes lifecycle observers manually. Normally handled automatically when the view detaches from the window.

Kotlin
Java

cometChatOutgoingCall.disposeObservers()

cometChatOutgoingCall.disposeObservers();

Internal Access

Method	Returns	Description
`getViewModel()`	`OutgoingViewModel`	The ViewModel managing call state and SDK listeners

Use this only when the standard API is insufficient. Directly manipulating the ViewModel may conflict with the component’s internal state management.

Style

The component uses XML theme styles. Define a custom style with parent CometChatOutgoingCallStyle in themes.xml, then apply with setStyle().

themes.xml

    <style name="CustomAvatarStyle" parent="CometChatAvatarStyle">
        <item name="cometchatAvatarStrokeRadius">8dp</item>
        <item name="cometchatAvatarBackgroundColor">#FBAA75</item>
    </style>
    <style name="CustomOutgoingCall" parent="CometChatOutgoingCallStyle">
        <item name="cometchatOutgoingCallAvatarStyle">@style/CustomAvatarStyle</item>
    </style>

Kotlin
Java

cometChatOutgoingCall.setStyle(R.style.CustomOutgoingCall)

cometChatOutgoingCall.setStyle(R.style.CustomOutgoingCall);

To know more such attributes, visit the attributes file.

Programmatic Style Properties

In addition to XML theme styles, the component exposes programmatic setters for fine-grained control:

Method	Type	Description
`setBackgroundColor`	`@ColorInt int`	Background color of the component
`setTitleTextColor`	`@ColorInt int`	Title text color
`setTitleTextAppearance`	`@StyleRes int`	Title text appearance
`setSubtitleTextColor`	`@ColorInt int`	Subtitle text color
`setSubtitleTextAppearance`	`@StyleRes int`	Subtitle text appearance
`setEndCallIcon`	`Drawable`	Custom end-call button icon
`setEndCallIconTint`	`@ColorInt int`	Tint color for the end-call icon
`setEndCallButtonBackgroundColor`	`@ColorInt int`	Background color for the end-call button
`setAvatarStyle`	`@StyleRes int`	Style for the avatar
`setCornerRadius`	`@Dimension int`	Corner radius of the component
`setStrokeWidth`	`@Dimension int`	Stroke width of the component border
`setStrokeColor`	`@ColorInt int`	Stroke color of the component border

Customization Matrix

What to change	Where	Property/API	Example
Set the call object	Activity/Fragment	`setCall(Call)`	`.setCall(call)`
Set the user directly	Activity/Fragment	`setUser(User)`	`.setUser(user)`
Override end-call behavior	Activity/Fragment	`setOnEndCallClick(OnClick)`	See `setOnEndCallClick` code above
Handle errors	Activity/Fragment	`setOnError(OnError)`	See `setOnError` code above
Disable outgoing call sound	Activity/Fragment	`disableSoundForCall(boolean)`	`.disableSoundForCall(true);`
Set custom outgoing call sound	Activity/Fragment	`setCustomSoundForCalls(@RawRes int)`	`.setCustomSoundForCalls(R.raw.custom_ringtone);`
Configure ongoing call settings	Activity/Fragment	`setCallSettingsBuilder(CallSettingsBuilder)`	`.setCallSettingsBuilder(builder)`
Title view	Activity/Fragment	`setTitleView(Function2)`	See `setTitleView` code above
Subtitle view	Activity/Fragment	`setSubtitleView(Function2)`	See `setSubtitleView` code above
Avatar view	Activity/Fragment	`setAvatarView(Function2)`	See `setAvatarView` code above
End-call button view	Activity/Fragment	`setEndCallView(Function2)`	See `setEndCallView` code above
Avatar style (corner radius, background)	`themes.xml`	`CometChatOutgoingCallStyle` with `cometchatOutgoingCallAvatarStyle`	`<item name="cometchatAvatarStrokeRadius">8dp</item>`
Apply a custom style	Activity/Fragment	`setStyle(@StyleRes int)`	`cometChatOutgoingCall.setStyle(R.style.CustomOutgoingCall);`
Title text color	Activity/Fragment	`setTitleTextColor(@ColorInt int)`	`.setTitleTextColor(Color.WHITE);`
Subtitle text color	Activity/Fragment	`setSubtitleTextColor(@ColorInt int)`	`.setSubtitleTextColor(Color.GRAY);`
End-call icon	Activity/Fragment	`setEndCallIcon(Drawable)`	`.setEndCallIcon(drawable);`
End-call icon tint	Activity/Fragment	`setEndCallIconTint(@ColorInt int)`	`.setEndCallIconTint(Color.WHITE);`
End-call button background	Activity/Fragment	`setEndCallButtonBackgroundColor(@ColorInt int)`	`.setEndCallButtonBackgroundColor(Color.RED);`
Background color	Activity/Fragment	`setBackgroundColor(@ColorInt int)`	`.setBackgroundColor(Color.BLACK);`
Corner radius	Activity/Fragment	`setCornerRadius(@Dimension int)`	`.setCornerRadius(16);`
Stroke width	Activity/Fragment	`setStrokeWidth(@Dimension int)`	`.setStrokeWidth(2);`
Stroke color	Activity/Fragment	`setStrokeColor(@ColorInt int)`	`.setStrokeColor(Color.GRAY);`

Accessibility

The component renders a full-screen outgoing call view. The end-call button responds to tap gestures. The avatar image includes the user name as content description. The title and subtitle text views are readable by screen readers. For custom views provided via setTitleView, setSubtitleView, setAvatarView, or setEndCallView, ensure you set android:contentDescription on visual-only elements so TalkBack can announce them. The default views handle this automatically.

Next Steps

Incoming Call

Incoming call notification with accept/reject

Call Buttons

Voice and video call initiation buttons

Call Logs

View call history

Conversations

Browse recent conversations

​Where It Fits

​Quick Start

​Actions and Events

​Callback Methods

​setOnEndCallClick

​setOnError

​Global UI Events (CometChatCallEvents)

​SDK Events

​Functionality

​Custom View Slots

​setTitleView

​setSubtitleView

​setAvatarView

​setEndCallView

​Common Patterns

​Silent outgoing call

​Custom ringtone

​Custom call settings for ongoing call

​Handle end-call with custom navigation

​Advanced Methods

​setCall

​setUser

​setCallSettingsBuilder

​setCustomSoundForCalls

​disposeObservers

​Internal Access

​Style

​Programmatic Style Properties

​Customization Matrix

​Accessibility

​Next Steps

Incoming Call

Call Buttons

Call Logs

Conversations

Where It Fits

Quick Start

Actions and Events

Callback Methods

`setOnEndCallClick`

`setOnError`

Global UI Events (CometChatCallEvents)

SDK Events

Functionality

Custom View Slots

`setTitleView`

`setSubtitleView`

`setAvatarView`

`setEndCallView`

Common Patterns

Silent outgoing call

Custom ringtone

Custom call settings for ongoing call

Handle end-call with custom navigation

Advanced Methods

`setCall`

`setUser`

`setCallSettingsBuilder`

`setCustomSoundForCalls`

`disposeObservers`

Internal Access

Style

Programmatic Style Properties

Customization Matrix

Accessibility

Next Steps
