Groups

Scrollable list of all available groups with search, avatars, names, and group type indicators.

AI Agent Component Spec

{
  "component": "CometChatGroups",
  "package": "com.cometchat.chatuikit.groups",
  "xmlElement": "<com.cometchat.chatuikit.groups.CometChatGroups />",
  "description": "Scrollable list of all available groups with search, avatars, names, and group type indicators (public, private, password-protected).",
  "primaryOutput": {
    "method": "setOnItemClick",
    "type": "OnItemClick<Group>"
  },
  "methods": {
    "data": {
      "setGroupsRequestBuilder": {
        "type": "GroupsRequest.GroupsRequestBuilder",
        "default": "SDK default",
        "note": "Pass the builder, not the result of .build()"
      },
      "setSearchRequestBuilder": {
        "type": "GroupsRequest.GroupsRequestBuilder",
        "default": "Same as main builder",
        "note": "Separate builder for search results"
      }
    },
    "callbacks": {
      "setOnItemClick": "OnItemClick<Group>",
      "setOnItemLongClick": "OnItemLongClick<Group>",
      "setOnBackPressListener": "OnBackPress",
      "setOnSelection": "OnSelection<Group>",
      "setOnError": "OnError",
      "setOnLoad": "OnLoad<Group>",
      "setOnEmpty": "OnEmpty"
    },
    "visibility": {
      "setBackIconVisibility": { "type": "int (View.VISIBLE | View.GONE)", "default": "View.GONE" },
      "setToolbarVisibility": { "type": "int", "default": "View.VISIBLE" },
      "setLoadingStateVisibility": { "type": "int", "default": "View.VISIBLE" },
      "setErrorStateVisibility": { "type": "int", "default": "View.VISIBLE" },
      "setEmptyStateVisibility": { "type": "int", "default": "View.VISIBLE" },
      "setSeparatorVisibility": { "type": "int", "default": "View.VISIBLE" },
      "setGroupTypeVisibility": { "type": "int", "default": "View.VISIBLE" },
      "setSearchBoxVisibility": { "type": "int", "default": "View.VISIBLE" }
    },
    "selection": {
      "setSelectionMode": {
        "type": "UIKitConstants.SelectionMode",
        "values": ["NONE", "SINGLE", "MULTIPLE"],
        "default": "NONE"
      }
    },
    "viewSlots": {

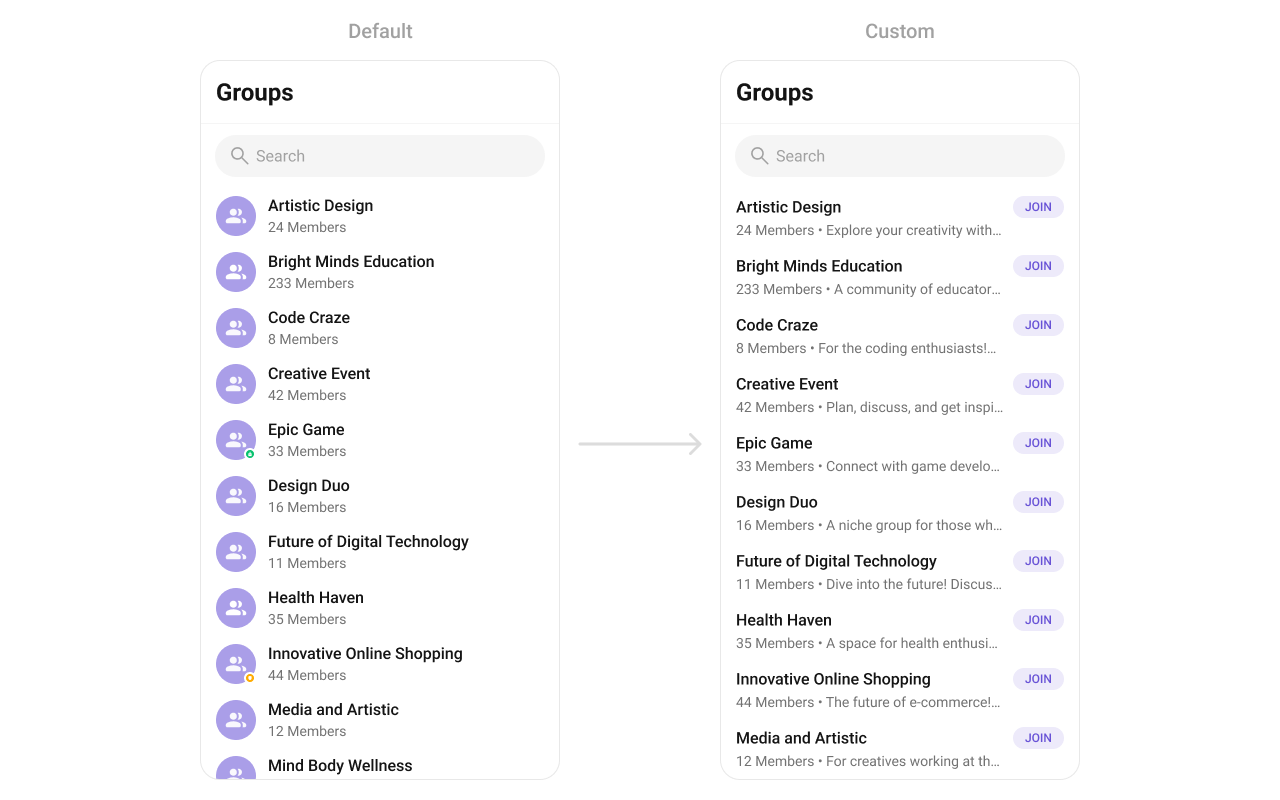

      "setItemView": "GroupsViewHolderListener — entire list item row",

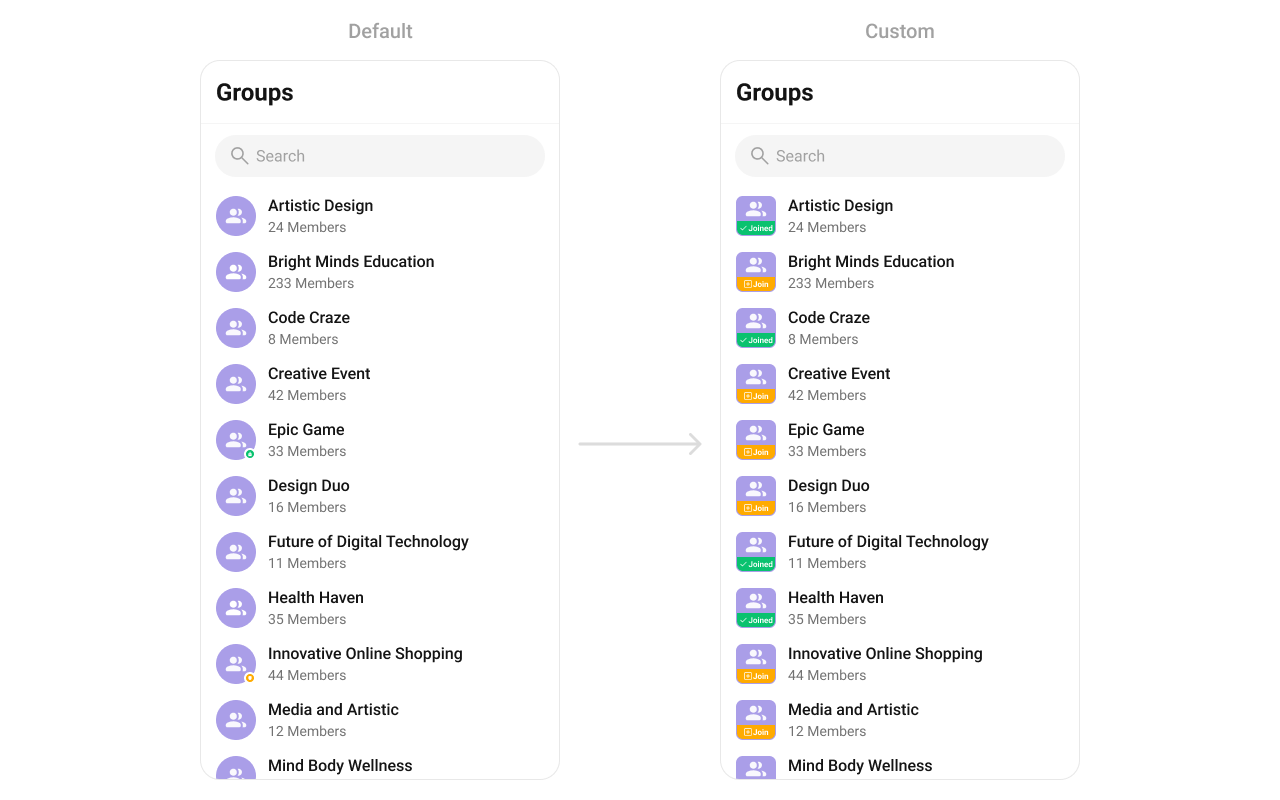

      "setLeadingView": "GroupsViewHolderListener — avatar / left section",

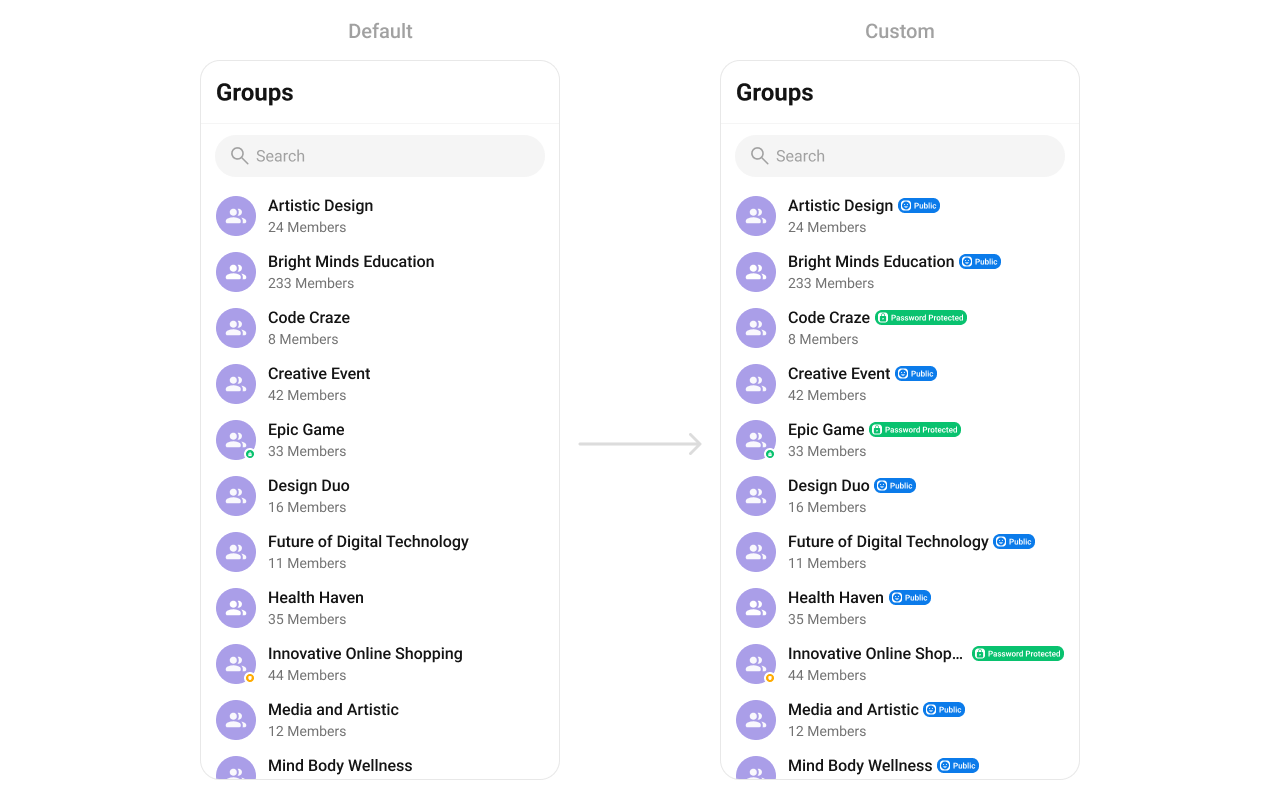

      "setTitleView": "GroupsViewHolderListener — name / title text",

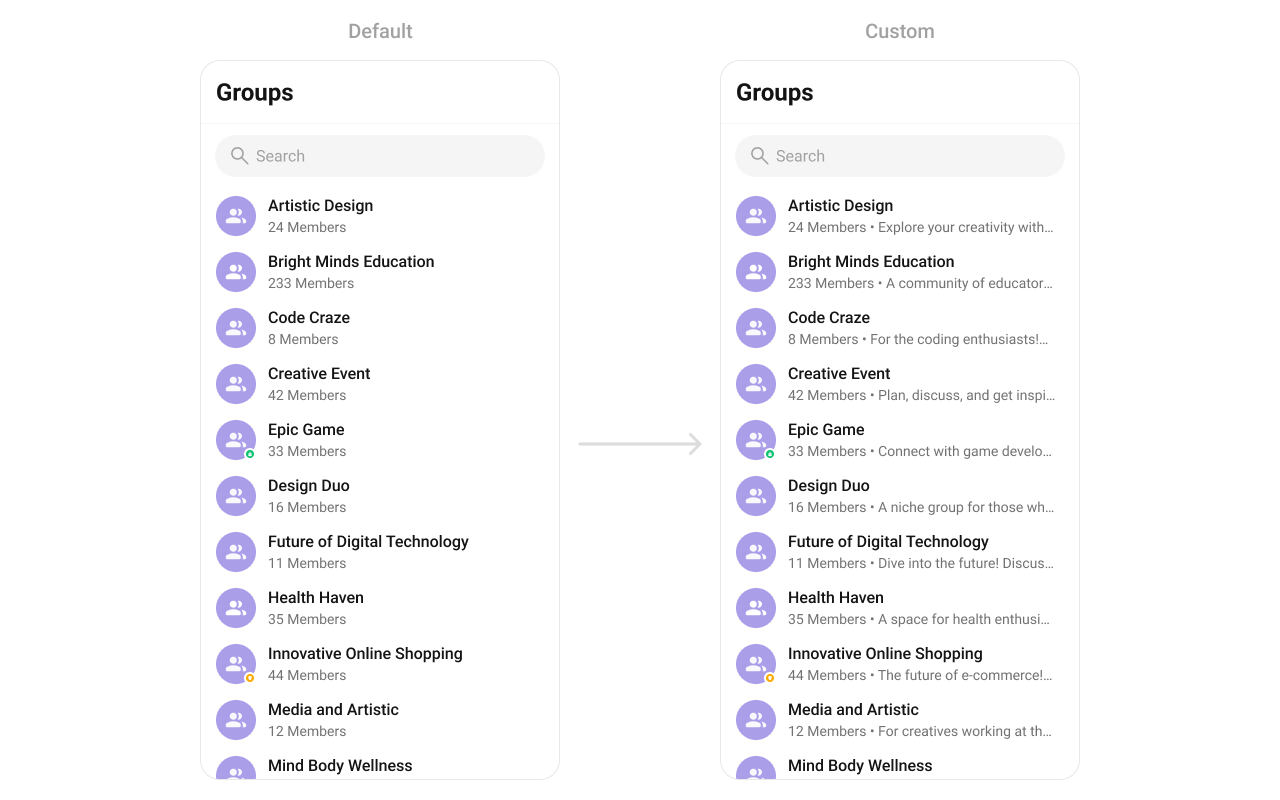

      "setSubtitleView": "GroupsViewHolderListener — subtitle text below name",

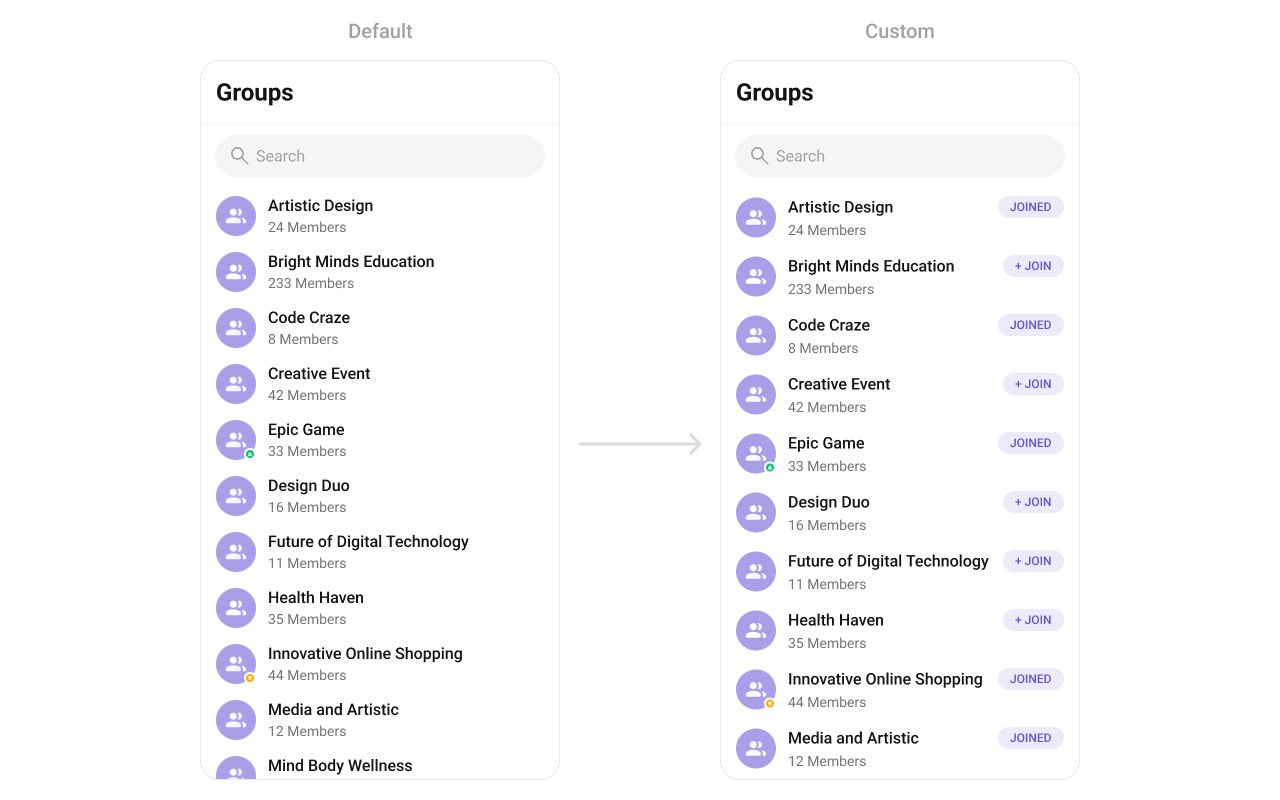

      "setTrailingView": "GroupsViewHolderListener — right section",
      "setLoadingView": "@LayoutRes int — loading spinner",
      "setEmptyView": "@LayoutRes int — empty state",
      "setErrorView": "@LayoutRes int — error state",
      "setOverflowMenu": "View — toolbar menu",
      "setOptions": "Function2<Context, Group, List<MenuItem>> — long-press context menu (replaces defaults)",
      "addOptions": "Function2<Context, Group, List<MenuItem>> — long-press context menu (appends to defaults)"
    },
    "advanced": {
      "selectGroup": "Group, SelectionMode — programmatic selection",
      "clearSelection": "void — clears all selected groups",
      "getSelectedGroups": "List<Group> — returns selected items",
      "setSearchKeyword": "String — programmatic search",
      "setTitleText": "String — custom toolbar title",
      "setSearchPlaceholderText": "String — search placeholder",
      "getBinding": "CometchatGroupListBinding — root ViewBinding",
      "getViewModel": "GroupsViewModel — internal ViewModel access",
      "getAdapter": "GroupsAdapter — internal adapter access",
      "setAdapter": "GroupsAdapter — replace the default adapter"
    },

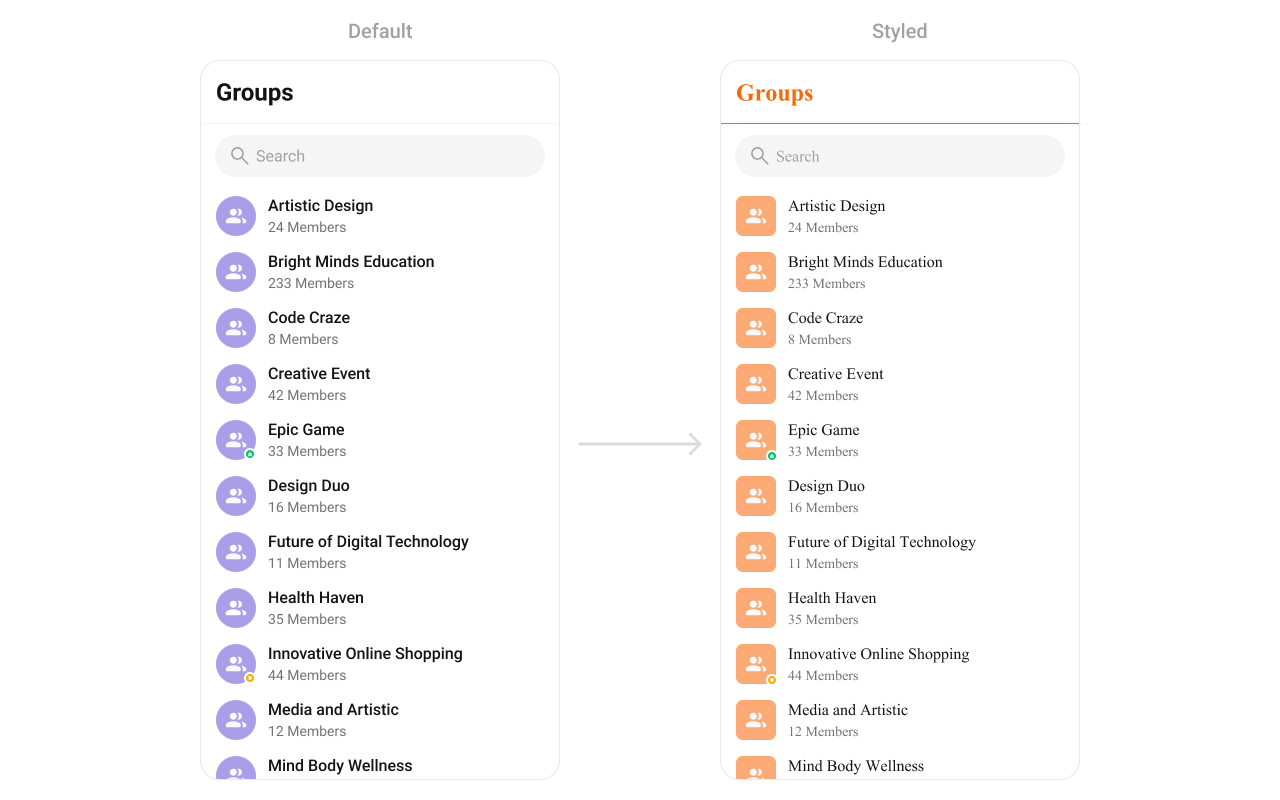

    "style": {
      "setStyle": {
        "type": "@StyleRes int",
        "parent": "CometChatGroupsStyle"
      }
    }
  },
  "events": [
    {
      "name": "CometChatGroupEvents.ccGroupCreated",
      "payload": "Group",
      "description": "Logged-in user created a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupDeleted",
      "payload": "Group",
      "description": "Logged-in user deleted a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupLeft",
      "payload": "Action, User, Group",
      "description": "Logged-in user left a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupMemberJoined",
      "payload": "User, Group",
      "description": "Logged-in user joined a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupMemberAdded",
      "payload": "List<Action>, List<User>, Group, User",
      "description": "Logged-in user added members to a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupMemberKicked",
      "payload": "Action, User, User, Group",
      "description": "Logged-in user kicked a member from a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupMemberBanned",
      "payload": "Action, User, User, Group",
      "description": "Logged-in user banned a member from a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupMemberUnBanned",
      "payload": "Action, User, User, Group",
      "description": "Logged-in user unbanned a member from a group"
    },
    {
      "name": "CometChatGroupEvents.ccGroupMemberScopeChanged",
      "payload": "Action, User, String, String, Group",
      "description": "Logged-in user changed a member's scope"
    },
    {
      "name": "CometChatGroupEvents.ccOwnershipChanged",
      "payload": "Group, GroupMember",
      "description": "Logged-in user transferred group ownership"
    }
  ],
  "sdkListeners": [
    "onGroupMemberJoined",
    "onGroupMemberLeft",
    "onGroupMemberKicked",
    "onGroupMemberBanned",
    "onGroupMemberUnbanned",
    "onGroupMemberScopeChanged",
    "onMemberAddedToGroup"
  ]
}

Where It Fits

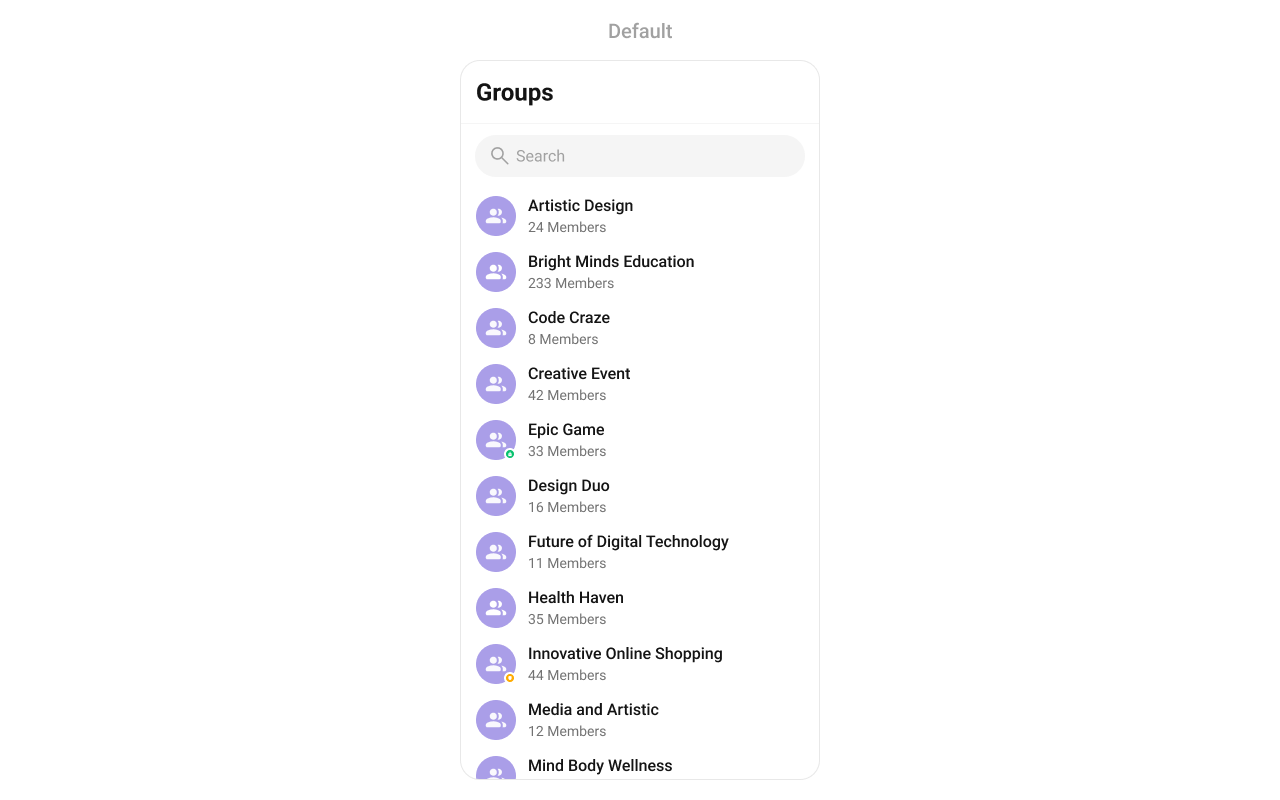

CometChatGroups is a list component. It renders all available groups and emits the selected Group via setOnItemClick. Wire it to CometChatMessageHeader, CometChatMessageList, and CometChatMessageComposer to build a group messaging layout.

Kotlin

ChatActivity.kt

class ChatActivity : AppCompatActivity() {

    private lateinit var groups: CometChatGroups
    private lateinit var messageHeader: CometChatMessageHeader
    private lateinit var messageList: CometChatMessageList
    private lateinit var messageComposer: CometChatMessageComposer

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_chat)

        groups = findViewById(R.id.groups)
        messageHeader = findViewById(R.id.message_header)
        messageList = findViewById(R.id.message_list)
        messageComposer = findViewById(R.id.message_composer)

        groups.setOnItemClick { view, position, group ->
            messageHeader.setGroup(group)
            messageList.setGroup(group)
            messageComposer.setGroup(group)
        }
    }
}

Java

ChatActivity.java

public class ChatActivity extends AppCompatActivity {

    private CometChatGroups groups;
    private CometChatMessageHeader messageHeader;
    private CometChatMessageList messageList;
    private CometChatMessageComposer messageComposer;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_chat);

        groups = findViewById(R.id.groups);
        messageHeader = findViewById(R.id.message_header);
        messageList = findViewById(R.id.message_list);
        messageComposer = findViewById(R.id.message_composer);

        groups.setOnItemClick((view, position, group) -> {
            messageHeader.setGroup(group);
            messageList.setGroup(group);
            messageComposer.setGroup(group);
        });
    }
}

Quick Start

Add the component to your layout XML:

layout_activity.xml

<com.cometchat.chatuikit.groups.CometChatGroups
    android:id="@+id/groups"
    android:layout_height="match_parent"
    android:layout_width="match_parent" />

Prerequisites: CometChat SDK initialized with CometChatUIKit.init(), a user logged in, and the cometchat-chat-uikit-android dependency added.

To add programmatically in an Activity:

Kotlin

YourActivity.kt

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    setContentView(CometChatGroups(this))
}

Java

YourActivity.java

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(new CometChatGroups(this));
}

Or in a Fragment:

Kotlin

YourFragment.kt

override fun onCreateView(inflater: LayoutInflater, container: ViewGroup?, savedInstanceState: Bundle?): View {
    return CometChatGroups(requireContext())
}

Java

YourFragment.java

@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
    return new CometChatGroups(getContext());
}

Filtering Groups

Pass a GroupsRequest.GroupsRequestBuilder to setGroupsRequestBuilder. Pass the builder instance — not the result of .build().

Kotlin

val builder = GroupsRequestBuilder()
    .setLimit(10)
    .joinedOnly(true)
cometchatGroups.setGroupsRequestBuilder(builder)

Java

GroupsRequest.GroupsRequestBuilder builder = new GroupsRequest.GroupsRequestBuilder()
    .setLimit(10)
    .joinedOnly(true);
cometchatGroups.setGroupsRequestBuilder(builder);

Filter Recipes

Recipe	Code
Joined only	builder.joinedOnly(true)
Limit to 10 per page	builder.setLimit(10)
Search by keyword	builder.setSearchKeyWord("design")
Filter by tags	builder.setTags(Arrays.asList("vip"))
With tags	builder.withTags(true)

The component uses infinite scroll — the next page loads as the user scrolls to the bottom. Refer to GroupsRequestBuilder for the full builder API.

Search Request Builder

Use setSearchRequestBuilder to customize the search list separately from the main list:

Kotlin

val searchBuilder = GroupsRequestBuilder()
    .setLimit(10)
    .setSearchKeyWord("**")
cometchatGroups.setSearchRequestBuilder(searchBuilder)

Java

GroupsRequest.GroupsRequestBuilder searchBuilder = new GroupsRequest.GroupsRequestBuilder()
    .setLimit(10)
    .setSearchKeyWord("**");
cometchatGroups.setSearchRequestBuilder(searchBuilder);

Actions and Events

Callback Methods

setOnItemClick

Fires when a group row is tapped. Primary navigation hook — set the active group and render the message view.

Kotlin

YourActivity.kt

cometchatGroups.onItemClick = OnItemClick { view, position, group ->

}

Java

YourActivity.java

cometchatGroups.setOnItemClick((view1, position, group) -> {

});

What this does: Replaces the default item-click behavior. When a user taps a group, your custom lambda executes instead of the built-in navigation.

setOnItemLongClick

Fires when a group row is long-pressed. Use for additional actions like delete or leave.

Kotlin

YourActivity.kt

cometchatGroups.onItemLongClick = OnItemLongClick({ view, position, group ->

})

Java

YourActivity.java

cometchatGroups.setOnItemLongClick((view1, position, group) -> {

});

setOnBackPressListener

Fires when the user presses the back button in the app bar. Default: navigates to the previous activity.

Kotlin

YourActivity.kt

cometchatGroups.onBackPressListener = OnBackPress {

}

Java

YourActivity.java

cometchatGroups.setOnBackPressListener(() -> {

});

setOnSelection

Fires when a group is checked/unchecked in multi-select mode. Requires setSelectionMode to be set.

Kotlin

YourActivity.kt

cometchatGroups.setOnSelection(object : OnSelection<Group?> {
    override fun onSelection(t: MutableList<Group?>?) {

    }
})

Java

YourActivity.java

cometchatGroups.setOnSelection(t -> {

});

setOnError

Fires on internal errors (network failure, auth issue, SDK exception).

Kotlin

YourActivity.kt

cometchatGroups.setOnError {

}

Java

YourActivity.java

cometchatGroups.setOnError(cometchatException -> {

});

setOnLoad

Fires when the list is successfully fetched and loaded.

Kotlin

YourActivity.kt

cometchatGroups.setOnLoad(object : OnLoad<Group?> {
    override fun onLoad(list: MutableList<Group?>?) {

    }
})

Java

YourActivity.java

cometchatGroups.setOnLoad(list -> {

});

setOnEmpty

Fires when the list is empty, enabling custom handling such as showing a placeholder.

Kotlin

YourActivity.kt

cometchatGroups.setOnEmpty {

}

Java

YourActivity.java

cometchatGroups.setOnEmpty(() -> {

});

• Verify: After setting an action callback, trigger the corresponding user interaction (tap, long-press, back, select) and confirm your custom logic executes instead of the default behavior.

Global UI Events

CometChatGroupEvents emits events subscribable from anywhere in the application. Add a listener and remove it when no longer needed.

Event	Fires when	Payload
ccGroupCreated	The logged-in user creates a group	Group
ccGroupDeleted	The logged-in user deletes a group	Group
ccGroupLeft	The logged-in user leaves a group	Action, User, Group
ccGroupMemberJoined	The logged-in user joins a group	User, Group
ccGroupMemberAdded	The logged-in user adds members to a group	List<Action>, List<User>, Group, User
ccGroupMemberKicked	The logged-in user kicks a member	Action, User, User, Group
ccGroupMemberBanned	The logged-in user bans a member	Action, User, User, Group
ccGroupMemberUnBanned	The logged-in user unbans a member	Action, User, User, Group
ccGroupMemberScopeChanged	The logged-in user changes a member’s scope	Action, User, String, String, Group
ccOwnershipChanged	The logged-in user transfers group ownership	Group, GroupMember

Kotlin

Add Listener

CometChatGroupEvents.addGroupListener("LISTENER_TAG", object : CometChatGroupEvents() {
    override fun ccGroupCreated(group: Group?) {
        super.ccGroupCreated(group)
    }

    override fun ccGroupDeleted(group: Group?) {
        super.ccGroupDeleted(group)
    }

    override fun ccGroupLeft(actionMessage: Action?, leftUser: User?, leftGroup: Group?) {
        super.ccGroupLeft(actionMessage, leftUser, leftGroup)
    }

    override fun ccGroupMemberJoined(joinedUser: User?, joinedGroup: Group?) {
        super.ccGroupMemberJoined(joinedUser, joinedGroup)
    }

    override fun ccGroupMemberAdded(
        actionMessages: List<Action?>?,
        usersAdded: List<User?>?,
        userAddedIn: Group?,
        addedBy: User?
    ) {
        super.ccGroupMemberAdded(actionMessages, usersAdded, userAddedIn, addedBy)
    }

    override fun ccGroupMemberKicked(
        actionMessage: Action?,
        kickedUser: User?,
        kickedBy: User?,
        kickedFrom: Group?
    ) {
        super.ccGroupMemberKicked(actionMessage, kickedUser, kickedBy, kickedFrom)
    }

    override fun ccGroupMemberBanned(
        actionMessage: Action?,
        bannedUser: User?,
        bannedBy: User?,
        bannedFrom: Group?
    ) {
        super.ccGroupMemberBanned(actionMessage, bannedUser, bannedBy, bannedFrom)
    }

    override fun ccGroupMemberUnBanned(
        actionMessage: Action?,
        unbannedUser: User?,
        unBannedBy: User?,
        unBannedFrom: Group?
    ) {
        super.ccGroupMemberUnBanned(actionMessage, unbannedUser, unBannedBy, unBannedFrom)
    }

    override fun ccGroupMemberScopeChanged(
        actionMessage: Action?,
        updatedUser: User?,
        scopeChangedTo: String?,
        scopeChangedFrom: String?,
        group: Group?
    ) {
        super.ccGroupMemberScopeChanged(
            actionMessage,
            updatedUser,
            scopeChangedTo,
            scopeChangedFrom,
            group
        )
    }

    override fun ccOwnershipChanged(group: Group?, newOwner: GroupMember?) {
        super.ccOwnershipChanged(group, newOwner)
    }
})

Remove Listener

CometChatGroupEvents.removeListeners()

Java

Add Listener

CometChatGroupEvents.addGroupListener("LISTENER_TAG", new CometChatGroupEvents() {
    @Override
    public void ccGroupCreated(Group group) {
        super.ccGroupCreated(group);
    }

    @Override
    public void ccGroupDeleted(Group group) {
        super.ccGroupDeleted(group);
    }

    @Override
    public void ccGroupLeft(Action actionMessage, User leftUser, Group leftGroup) {
        super.ccGroupLeft(actionMessage, leftUser, leftGroup);
    }

    @Override
    public void ccGroupMemberJoined(User joinedUser, Group joinedGroup) {
        super.ccGroupMemberJoined(joinedUser, joinedGroup);
    }

    @Override
    public void ccGroupMemberAdded(List<Action> actionMessages, List<User> usersAdded, Group userAddedIn, User addedBy) {
        super.ccGroupMemberAdded(actionMessages, usersAdded, userAddedIn, addedBy);
    }

    @Override
    public void ccGroupMemberKicked(Action actionMessage, User kickedUser, User kickedBy, Group kickedFrom) {
        super.ccGroupMemberKicked(actionMessage, kickedUser, kickedBy, kickedFrom);
    }

    @Override
    public void ccGroupMemberBanned(Action actionMessage, User bannedUser, User bannedBy, Group bannedFrom) {
        super.ccGroupMemberBanned(actionMessage, bannedUser, bannedBy, bannedFrom);
    }

    @Override
    public void ccGroupMemberUnBanned(Action actionMessage, User unbannedUser, User unBannedBy, Group unBannedFrom) {
        super.ccGroupMemberUnBanned(actionMessage, unbannedUser, unBannedBy, unBannedFrom);
    }

    @Override
    public void ccGroupMemberScopeChanged(Action actionMessage, User updatedUser, String scopeChangedTo, String scopeChangedFrom, Group group) {
        super.ccGroupMemberScopeChanged(actionMessage, updatedUser, scopeChangedTo, scopeChangedFrom, group);
    }

    @Override
    public void ccOwnershipChanged(Group group, GroupMember newOwner) {
        super.ccOwnershipChanged(group, newOwner);
    }
});

Remove Listener

CometChatGroupEvents.removeListeners();

SDK Events (Real-Time, Automatic)

The component listens to these SDK events internally. No manual attachment needed unless additional side effects are required.

SDK Listener	Internal behavior
onGroupMemberJoined	Updates the group list when a member joins
onGroupMemberLeft	Updates the group list when a member leaves
onGroupMemberKicked	Updates the group list when a member is kicked
onGroupMemberBanned	Updates the group list when a member is banned
onGroupMemberUnbanned	Updates the group list when a member is unbanned
onGroupMemberScopeChanged	Updates the group list when a member’s scope changes
onMemberAddedToGroup	Updates the group list when members are added

Automatic: group membership changes update the list in real time.

Functionality

Small functional customizations such as toggling visibility of UI elements and configuring selection modes.

Methods	Description	Code
setBackIconVisibility	Toggles visibility for the back button in the app bar	.setBackIconVisibility(View.VISIBLE);
setToolbarVisibility	Toggles visibility for the toolbar in the app bar	.setToolbarVisibility(View.GONE);
setLoadingStateVisibility	Hides the loading state while fetching groups	.setLoadingStateVisibility(View.GONE);
setErrorStateVisibility	Hides the error state on fetching groups	.setErrorStateVisibility(View.GONE);
setEmptyStateVisibility	Hides the empty state on fetching groups	.setEmptyStateVisibility(View.GONE);
setSeparatorVisibility	Controls visibility of separators in the list view	.setSeparatorVisibility(View.GONE);
setGroupTypeVisibility	Controls visibility of the group type indicator (public, private, password)	.setGroupTypeVisibility(View.GONE);
setSearchBoxVisibility	Controls visibility of the search box in the toolbar	.setSearchBoxVisibility(View.GONE);
setSelectionMode	Determines the selection mode (single or multiple)	.setSelectionMode(UIKitConstants.SelectionMode.MULTIPLE);
setSearchKeyword	Programmatically triggers a search with the given keyword	.setSearchKeyword("design");
setTitleText	Sets a custom title in the toolbar	.setTitleText("My Groups");
setTitleVisibility	Toggles visibility for the title text in the toolbar	.setTitleVisibility(View.GONE);
setSearchPlaceholderText	Sets the placeholder text for the search input	.setSearchPlaceholderText("Find groups...");

• Verify: After calling a visibility method, confirm the corresponding UI element is shown or hidden.

Custom View Slots

Each slot replaces a section of the default UI. Slots that accept a Group parameter receive the group object for that row via the GroupsViewHolderListener pattern (createView + bindView).

Slot	Method	Replaces
Leading view	setLeadingView(GroupsViewHolderListener)	Avatar / left section
Title view	setTitleView(GroupsViewHolderListener)	Name / title text
Subtitle view	setSubtitleView(GroupsViewHolderListener)	Subtitle text below name
Trailing view	setTrailingView(GroupsViewHolderListener)	Right section
Item view	setItemView(GroupsViewHolderListener)	Entire list item row
Loading view	setLoadingView(@LayoutRes int)	Loading spinner
Empty view	setEmptyView(@LayoutRes int)	Empty state
Error view	setErrorView(@LayoutRes int)	Error state
Overflow menu	setOverflowMenu(View)	Toolbar menu
Options (replace)	setOptions(Function2)	Long-press context menu (replaces defaults)
Options (append)	addOptions(Function2)	Long-press context menu (appends to defaults)

setLeadingView

Replace the avatar / left section.

Kotlin

cometchatGroups.setLeadingView(object : GroupsViewHolderListener() {
    override fun createView(
        context: Context?,
        listItem: CometchatListBaseItemsBinding?
    ): View? {
        return null
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
    }
})

Java

cometchatGroups.setLeadingView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {

    }
});

What this does: Registers a GroupsViewHolderListener that provides a custom view for the leading (left) area of each group item. createView inflates your layout, and bindView populates it with group data.

Join status badge example:

Create a custom_leading_avatar_view.xml layout:

custom_leading_avatar_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/leading_avatar_view"
    android:layout_width="@dimen/cometchat_40dp"
    android:layout_height="@dimen/cometchat_40dp"
    android:background="@drawable/group_leading_joined"
    android:orientation="vertical">

</LinearLayout>

Kotlin

cometchatGroups.setLeadingView(object : GroupsViewHolderListener() {
    override fun createView(context: Context?, listItem: CometchatListBaseItemsBinding?): View {
        return LayoutInflater.from(context).inflate(R.layout.custom_leading_avatar_view, null)
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
        val groupAvatar = createdView.findViewById<LinearLayout>(R.id.leading_avatar_view)
        groupAvatar.background = if (group.isJoined) ResourcesCompat.getDrawable(
            resources,
            R.drawable.group_leading_joined,
            null
        ) else ResourcesCompat.getDrawable(
            resources,
            R.drawable.group_leading_join,
            null
        )
        groupAvatar.setOnLongClickListener { v: View? ->
            if (group.isJoined) {
                Toast.makeText(context, "Group already joined", Toast.LENGTH_SHORT).show()
            } else {
                Toast.makeText(context, "Joining group", Toast.LENGTH_SHORT).show()
            }
            true
        }
    }
})

Java

cometchatGroups.setLeadingView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return LayoutInflater.from(context).inflate(R.layout.custom_leading_avatar_view, null);
    }

    @Override
    public void bindView(Context context,
                         View createdView,
                         Group group,
                         RecyclerView.ViewHolder holder,
                         List<Group> groupList,
                         int position) {
        LinearLayout groupAvatar = createdView.findViewById(R.id.leading_avatar_view);
        groupAvatar.setBackground(group.isJoined() ? ResourcesCompat.getDrawable(getResources(),
                                                                                 R.drawable.group_leading_joined,
                                                                                 null) : ResourcesCompat.getDrawable(getResources(),
                                                                                                                     R.drawable.group_leading_join,
                                                                                                                     null));
        groupAvatar.setOnLongClickListener(v -> {
            if (group.isJoined()) {
                Toast.makeText(context, "Group already joined", Toast.LENGTH_SHORT).show();
            } else {
                Toast.makeText(context, "Joining group", Toast.LENGTH_SHORT).show();
            }
            return true;
        });
    }
});

setTitleView

Replace the name / title text.

Kotlin

cometchatGroups.setTitleView(object : GroupsViewHolderListener() {
    override fun createView(
        context: Context?,
        listItem: CometchatListBaseItemsBinding?
    ): View? {
        return null
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
    }
})

Java

cometchatGroups.setTitleView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {

    }
});

Group type icon example:

Create a custom_group_title_view.xml layout:

custom_group_title_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/user_layout"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:gravity="center_vertical"
    android:orientation="horizontal">

    <TextView
        android:id="@+id/title"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_weight="1"
        android:text="teacher"
        android:textAppearance="?attr/cometchatTextAppearanceHeading4Medium" />

    <View
        android:id="@+id/type"
        android:layout_width="wrap_content"
        android:layout_height="15dp"
        android:layout_marginStart="@dimen/cometchat_16dp"
         />

</LinearLayout>

Kotlin

cometchatGroups.setTitleView(object : GroupsViewHolderListener() {
    override fun createView(context: Context?, listItem: CometchatListBaseItemsBinding?): View {
        return LayoutInflater.from(context).inflate(R.layout.custom_group_title_view, null)
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
        val layout = createdView.findViewById<LinearLayout>(R.id.group_layout)
        val layoutParams = LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.WRAP_CONTENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        )
        layout.layoutParams = layoutParams
        val name = createdView.findViewById<TextView>(R.id.title)
        name.text = group.name
        val type = createdView.findViewById<View>(R.id.type)
        if (CometChatConstants.GROUP_TYPE_PUBLIC == group.groupType) {
            type.visibility = View.VISIBLE
            type.background = ResourcesCompat.getDrawable(resources, R.drawable.public_icon, null)
        } else if (CometChatConstants.GROUP_TYPE_PASSWORD == group.groupType) {
            type.visibility = View.VISIBLE
            type.background = ResourcesCompat.getDrawable(resources, R.drawable.passowrd_icon, null)
        } else if (CometChatConstants.GROUP_TYPE_PRIVATE == group.groupType) {
            type.visibility = View.VISIBLE
            type.background = ResourcesCompat.getDrawable(resources, R.drawable.private_icon, null)
        } else {
            type.visibility = View.GONE
        }
    }
})

Java

cometchatGroups.setTitleView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return LayoutInflater.from(context).inflate(R.layout.custom_group_title_view, null);
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {
        LinearLayout layout = createdView.findViewById(R.id.user_layout);
        LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,
                                                                               ViewGroup.LayoutParams.WRAP_CONTENT);
        layout.setLayoutParams(layoutParams);
        TextView name = createdView.findViewById(R.id.title);
        name.setText(group.getName());
        View type = createdView.findViewById(R.id.type);

        if (CometChatConstants.GROUP_TYPE_PUBLIC.equals(group.getGroupType())) {
            type.setVisibility(View.VISIBLE);
            type.setBackground(ResourcesCompat.getDrawable(getResources(), R.drawable.public_icon, null));
        } else if (CometChatConstants.GROUP_TYPE_PASSWORD.equals(group.getGroupType())) {
            type.setVisibility(View.VISIBLE);
            type.setBackground(ResourcesCompat.getDrawable(getResources(), R.drawable.passowrd_icon, null));
        } else if (CometChatConstants.GROUP_TYPE_PRIVATE.equals(group.getGroupType())) {
            type.setVisibility(View.VISIBLE);
            type.setBackground(ResourcesCompat.getDrawable(getResources(), R.drawable.private_icon, null));
        } else {
            type.setVisibility(View.GONE);
        }
    }
});

setSubtitleView

Replace the subtitle text below the group’s name.

Kotlin

cometchatGroups.setSubtitleView(object : GroupsViewHolderListener() {
    override fun createView(
        context: Context?,
        listItem: CometchatListBaseItemsBinding?
    ): View? {
        return null
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
    }
})

Java

cometchatGroups.setSubtitleView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {

    }
});

Example with member count and description:

Kotlin

YourActivity.kt

cometchatGroups.setSubtitleView(object : GroupsViewHolderListener() {
    override fun createView(
        context: Context?,
        listItem: CometchatListBaseItemsBinding?
    ): View {
        return TextView(context)
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
        val textView = createdView as TextView
        textView.text =
            if (group.membersCount > 1) group.membersCount.toString() + " members" else group.membersCount.toString() + " member" + " • " + group.description
    }
})

Java

YourActivity.java

cometchatGroups.setSubtitleView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return new TextView(context);
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {
        TextView textView = (TextView) createdView;
        textView.setText(group.getMembersCount() > 1 ? group.getMembersCount() + " members" : group.getMembersCount() + " member" + " • " + group.getDescription());
    }
});

setTrailingView

Replace the right section of each group item.

Kotlin

cometchatGroups.setTrailingView(object : GroupsViewHolderListener() {
    override fun createView(
        context: Context?,
        listItem: CometchatListBaseItemsBinding?
    ): View? {
        return null
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
    }
})

Java

cometchatGroups.setTrailingView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {

    }
});

Join button example:

Create a custom_tail_view.xml layout:

custom_tail_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:gravity="center_vertical"
    android:orientation="horizontal">

    <com.google.android.material.button.MaterialButton
        android:id="@+id/button"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:backgroundTint="#EDEAFA"
        android:text="+ joined"
        android:textStyle="bold"
        android:textAppearance="?attr/cometchatTextAppearanceCaption2Regular"
        android:textAllCaps="true"
        android:textColor="#6852D6"
        app:cornerRadius="@dimen/cometchat_1000dp" />
</LinearLayout>

Kotlin

cometchatGroups.setTrailingView(object : GroupsViewHolderListener() {
    override fun createView(context: Context?, listItem: CometchatListBaseItemsBinding?): View {
        return LayoutInflater.from(context).inflate(R.layout.custom_tail_view, null)
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
        val button = createdView.findViewById<MaterialButton>(R.id.button)
        button.text = (if (group.isJoined) "Joined" else "+ Join")
    }
})

Java

cometchatGroups.setTrailingView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return LayoutInflater.from(context).inflate(R.layout.custom_tail_view, null);
    }

    @Override
    public void bindView(Context context,
                         View createdView,
                         Group group,
                         RecyclerView.ViewHolder holder,
                         List<Group> groupList,
                         int position) {
         MaterialButton button = createdView.findViewById(R.id.button);
        button.setText(group.isJoined() ? "Joined" : "+ Join");
    }
});

setItemView

Replace the entire list item row.

Kotlin

cometchatGroups.setItemView(object : GroupsViewHolderListener() {
    override fun createView(
        context: Context?,
        listItem: CometchatListBaseItemsBinding?
    ): View? {
        return null
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
    }
})

Java

cometchatGroups.setItemView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return null;
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {

    }
});

Custom list item example:

Create a custom_group_list_item.xml layout:

custom_group_list_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">

        <TextView
            android:id="@+id/tvName"
            android:layout_width="0dp"
            android:layout_weight="1"
            android:layout_height="wrap_content"
            android:maxLines="1"
            android:textAppearance="?attr/cometchatTextAppearanceHeading4Bold"
            android:textColor="?attr/cometchatTextColorPrimary" />

        <com.google.android.material.card.MaterialCardView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="@dimen/cometchat_16dp"
            android:layout_marginTop="@dimen/cometchat_2dp"
            android:layout_marginBottom="@dimen/cometchat_2dp"
            android:elevation="0dp"
            app:cardBackgroundColor="#EDEAFA"
            app:cardCornerRadius="@dimen/cometchat_radius_max"
            app:cardElevation="0dp">

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginStart="@dimen/cometchat_margin_3"
                android:layout_marginTop="@dimen/cometchat_margin_1"
                android:layout_marginEnd="@dimen/cometchat_margin_3"
                android:layout_marginBottom="@dimen/cometchat_margin_1"
                android:text="JOIN"
                android:textAppearance="@style/CometChatTextAppearanceCaption1.Medium"
                android:textColor="?attr/cometchatPrimaryColor" />
        </com.google.android.material.card.MaterialCardView>
    </LinearLayout>

    <TextView
        android:id="@+id/tvSubtitle"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="@dimen/cometchat_margin_1"
        android:textAppearance="?attr/cometchatTextAppearanceBodyRegular"
        android:textColor="?attr/cometchatTextColorSecondary" />
</LinearLayout>

Kotlin

YourActivity.kt

cometchatGroups.setItemView(object : GroupsViewHolderListener() {
    override fun createView(
        context: Context?,
        listItem: CometchatListBaseItemsBinding?
    ): View {
        return View.inflate(context, R.layout.custom_group_list_item, null)
    }

    override fun bindView(
        context: Context,
        createdView: View,
        group: Group,
        holder: RecyclerView.ViewHolder,
        groupList: List<Group>,
        position: Int
    ) {
        val groupName = createdView.findViewById<TextView>(R.id.tvName)
        val groupMemberCount = createdView.findViewById<TextView>(R.id.tvSubtitle)
        val params = LinearLayout.LayoutParams(
            LinearLayout.LayoutParams.MATCH_PARENT,
            LinearLayout.LayoutParams.WRAP_CONTENT
        )
        createdView.layoutParams = params
        groupName.text = group.name
        groupMemberCount.text =
            if (group.membersCount > 1) group.membersCount.toString() + " members" else group.membersCount.toString() + " member" + " • " + group.description
    }
})

Java

YourActivity.java

cometchatGroups.setItemView(new GroupsViewHolderListener() {
    @Override
    public View createView(Context context, CometchatListBaseItemsBinding listItem) {
        return View.inflate(context, R.layout.custom_group_list_item, null);
    }

    @Override
    public void bindView(Context context, View createdView, Group group, RecyclerView.ViewHolder holder, List<Group> groupList, int position) {
        TextView groupName = createdView.findViewById(R.id.tvName);
        TextView groupMemberCount = createdView.findViewById(R.id.tvSubtitle);
        LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(LinearLayout.LayoutParams.MATCH_PARENT, LinearLayout.LayoutParams.WRAP_CONTENT);
        createdView.setLayoutParams(params);
        groupName.setText(group.getName());
        groupMemberCount.setText(group.getMembersCount() > 1 ? group.getMembersCount() + " members" : group.getMembersCount() + " member" + " • " + group.getDescription());
    }
});

setOptions

Replace the long-press context menu entirely.

Kotlin

cometchatGroups.options = Function2<Context?, Group?, List<CometChatPopupMenu.MenuItem?>?> { context, group -> emptyList<CometChatPopupMenu.MenuItem?>() }

Java

cometchatGroups.setOptions((context, group) -> Collections.emptyList());

addOptions

Append to the long-press context menu without removing defaults.

Kotlin

cometchatGroups.addOptions { context, group -> emptyList<CometChatPopupMenu.MenuItem?>() }

Java

cometchatGroups.addOptions((context, group) -> Collections.emptyList());

setLoadingView

Sets a custom loading view displayed when data is being fetched.

Kotlin

cometchatGroups.loadingView = R.layout.your_loading_view

Java

cometchatGroups.setLoadingView(R.layout.your_loading_view);

setEmptyView

Configures a custom view displayed when there are no groups in the list.

Kotlin

cometchatGroups.emptyView = R.layout.your_empty_view

Java

cometchatGroups.setEmptyView(R.layout.your_empty_view);

setErrorView

Defines a custom error state view that appears when an issue occurs while loading groups.

Kotlin

cometchatGroups.errorView = R.layout.your_error_view

Java

cometchatGroups.setErrorView(R.layout.your_error_view);

setOverflowMenu

Replace the toolbar overflow menu.

Create an overflow_menu_layout.xml layout:

overflow_menu_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:orientation="vertical">

    <ImageView
        android:id="@+id/ivMenu"
        android:layout_width="@dimen/cometchat_24dp"
        android:layout_height="@dimen/cometchat_24dp"
        android:layout_marginStart="@dimen/cometchat_margin_4"
        android:importantForAccessibility="no"
        android:src="@drawable/ic_create_group" />

</LinearLayout>

Kotlin

YourActivity.kt

val view: View = layoutInflater.inflate(R.layout.overflow_menu_layout, null)
val imgRefresh = view.findViewById<ImageView>(R.id.ivMenu)
imgRefresh.setOnClickListener { v: View? ->
    Toast.makeText(requireContext(), "Clicked on Refresh", Toast.LENGTH_SHORT).show()
}
cometchatGroups.setOverflowMenu(view)

Java

YourActivity.java

View view = getLayoutInflater().inflate(R.layout.overflow_menu_layout, null);
ImageView imgRefresh = view.findViewById(R.id.ivMenu);
imgRefresh.setOnClickListener(v -> {
    Toast.makeText(requireContext(), "Clicked on Refresh", Toast.LENGTH_SHORT).show();
});
cometchatGroups.setOverflowMenu(view);

• Verify: After setting any custom view slot, confirm the custom view renders in the correct position within the group list item, and the data binding populates correctly for each group.

Common Patterns

Hide all chrome — minimal list

Kotlin

cometchatGroups.setGroupTypeVisibility(View.GONE)
cometchatGroups.setSeparatorVisibility(View.GONE)
cometchatGroups.setToolbarVisibility(View.GONE)

Java

cometchatGroups.setGroupTypeVisibility(View.GONE);
cometchatGroups.setSeparatorVisibility(View.GONE);
cometchatGroups.setToolbarVisibility(View.GONE);

Joined groups only

Kotlin

val builder = GroupsRequestBuilder()
    .joinedOnly(true)
cometchatGroups.setGroupsRequestBuilder(builder)

Java

GroupsRequest.GroupsRequestBuilder builder = new GroupsRequest.GroupsRequestBuilder()
    .joinedOnly(true);
cometchatGroups.setGroupsRequestBuilder(builder);

Filter by tags

Kotlin

val builder = GroupsRequestBuilder()
    .setTags(listOf("vip", "premium"))
cometchatGroups.setGroupsRequestBuilder(builder)

Java

GroupsRequest.GroupsRequestBuilder builder = new GroupsRequest.GroupsRequestBuilder()
    .setTags(Arrays.asList("vip", "premium"));
cometchatGroups.setGroupsRequestBuilder(builder);

Advanced Methods

Programmatic Selection

selectGroup

Programmatically selects or deselects a group. Works with both SINGLE and MULTIPLE selection modes.

Kotlin

// Select a group in single-select mode
cometchatGroups.selectGroup(group, UIKitConstants.SelectionMode.SINGLE)

// Select a group in multi-select mode
cometchatGroups.selectGroup(group, UIKitConstants.SelectionMode.MULTIPLE)

Java

// Select a group in single-select mode
cometchatGroups.selectGroup(group, UIKitConstants.SelectionMode.SINGLE);

// Select a group in multi-select mode
cometchatGroups.selectGroup(group, UIKitConstants.SelectionMode.MULTIPLE);

In SINGLE mode, selecting a new group replaces the previous selection. In MULTIPLE mode, calling this on an already-selected group deselects it (toggle behavior).

clearSelection

Clears all selected groups and resets the selection UI.

Kotlin

cometchatGroups.clearSelection()

Java

cometchatGroups.clearSelection();

getSelectedGroups

Returns the list of currently selected Group objects.

Kotlin

val selected = cometchatGroups.selectedGroups

Java

List<Group> selected = cometchatGroups.getSelectedGroups();

Selected Groups List

When using multi-select mode, a horizontal list of selected groups can be shown above the main list.

Method	Type	Description
setSelectedGroupsListVisibility	int (View.VISIBLE / View.GONE)	Show or hide the selected groups strip
setSelectedGroupAvatarStyle	@StyleRes int	Avatar style for selected group chips
setSelectedGroupItemTextColor	@ColorInt int	Text color for selected group names
setSelectedGroupItemTextAppearance	@StyleRes int	Text appearance for selected group names
setSelectedGroupItemRemoveIcon	Drawable	Icon for the remove button on each chip
setSelectedGroupItemRemoveIconTint	@ColorInt int	Tint color for the remove icon

Search Input Customization

The built-in search box can be customized programmatically:

Method	Type	Description
setSearchPlaceholderText	String	Sets the placeholder text for the search input
setSearchInputTextColor	@ColorInt int	Text color of the search input
setSearchInputTextAppearance	@StyleRes int	Text appearance of the search input
setSearchInputPlaceHolderTextColor	@ColorInt int	Placeholder text color
setSearchInputPlaceHolderTextAppearance	@StyleRes int	Placeholder text appearance
setSearchInputIcon	Drawable	Leading icon in the search box
setSearchInputIconTint	@ColorInt int	Tint for the leading icon
setSearchInputEndIcon	Drawable	Trailing icon in the search box
setSearchInputEndIconTint	@ColorInt int	Tint for the trailing icon
setSearchInputStrokeWidth	@Dimension int	Stroke width of the search box border
setSearchInputStrokeColor	@ColorInt int	Stroke color of the search box border
setSearchInputBackgroundColor	@ColorInt int	Background color of the search box
setSearchInputCornerRadius	@Dimension int	Corner radius of the search box

Internal Access

These methods provide direct access to internal components for advanced use cases.

Method	Returns	Description
getBinding()	CometchatGroupListBinding	The ViewBinding for the component’s root layout
getViewModel()	GroupsViewModel	The ViewModel managing group data and state
getAdapter()	GroupsAdapter	The adapter powering the RecyclerView
setAdapter(GroupsAdapter)	void	Replaces the default adapter with a custom one

Use these only when the standard API is insufficient. Directly manipulating the adapter or ViewModel may conflict with the component’s internal state management.

Style

The component uses XML theme styles. Define a custom style with parent CometChatGroupsStyle in themes.xml, then apply with setStyle().

themes.xml

    <style name="CustomAvatarStyle" parent="CometChatAvatarStyle">
        <item name="cometchatAvatarStrokeRadius">8dp</item>
        <item name="cometchatAvatarBackgroundColor">#FBAA75</item>
    </style>
    <style name="CustomGroupsStyle" parent="CometChatGroupsStyle">
        <item name="cometchatGroupsAvatar">@style/CustomAvatarStyle</item>
        <item name="cometchatGroupsSeparatorColor">#F76808</item>
        <item name="cometchatGroupsTitleTextColor">#F76808</item>
    </style>

Kotlin

cometchatGroups.setStyle(R.style.CustomGroupsStyle)

Java

cometchatGroups.setStyle(R.style.CustomGroupsStyle);

To know more such attributes, visit the attributes file.

Programmatic Style Properties

In addition to XML theme styles, the component exposes programmatic setters for fine-grained control:

Method	Type	Description
setBackgroundColor	@ColorInt int	Background color of the component
setBackIconTint	@ColorInt int	Tint color for the back icon
setBackIcon	Drawable	Custom back icon drawable
setTitleTextColor	@ColorInt int	Title text color in the toolbar
setTitleTextAppearance	@StyleRes int	Title text appearance in the toolbar
setItemTitleTextColor	@ColorInt int	Text color for group item titles
setItemTitleTextAppearance	@StyleRes int	Text appearance for group item titles
setItemBackgroundColor	@ColorInt int	Background color for list items
setItemSelectedBackgroundColor	@ColorInt int	Background color for selected list items
setSeparatorColor	@ColorInt int	Color of list item separators
setStrokeColor	@ColorInt int	Stroke color of the component border
setStrokeWidth	@Dimension int	Stroke width of the component border
setCornerRadius	@Dimension int	Corner radius of the component
setSubtitleTextColor	@ColorInt int	Text color for group item subtitles
setSubtitleTextAppearance	@StyleRes int	Text appearance for group item subtitles
setEmptyStateTextColor	@ColorInt int	Title text color for the empty state
setEmptyStateTextAppearance	@StyleRes int	Title text appearance for the empty state
setEmptyStateSubtitleTextColor	@ColorInt int	Subtitle text color for the empty state
setEmptyStateSubTitleTextAppearance	@StyleRes int	Subtitle text appearance for the empty state
setErrorStateTextColor	@ColorInt int	Title text color for the error state
setErrorStateTextAppearance	@StyleRes int	Title text appearance for the error state
setErrorStateSubtitleColor	@ColorInt int	Subtitle text color for the error state
setErrorStateSubtitleTextAppearance	@StyleRes int	Subtitle text appearance for the error state
setRetryButtonTextColor	@ColorInt int	Text color for the retry button
setRetryButtonTextAppearance	@StyleRes int	Text appearance for the retry button
setRetryButtonBackgroundColor	@ColorInt int	Background color for the retry button
setRetryButtonStrokeColor	@ColorInt int	Stroke color for the retry button
setRetryButtonStrokeWidth	@Dimension int	Stroke width for the retry button
setRetryButtonCornerRadius	@Dimension int	Corner radius for the retry button
setAvatarStyle	@StyleRes int	Style for group avatars
setStatusIndicatorStyle	@StyleRes int	Style for group type status indicators

Checkbox Style Properties (Selection Mode)

When using SINGLE or MULTIPLE selection mode, checkboxes appear on each item:

Method	Type	Description
setCheckBoxStrokeWidth	@Dimension int	Stroke width of the checkbox border
setCheckBoxCornerRadius	@Dimension int	Corner radius of the checkbox
setCheckBoxStrokeColor	@ColorInt int	Stroke color of the checkbox border
setCheckBoxBackgroundColor	@ColorInt int	Background color of unchecked checkbox
setCheckBoxCheckedBackgroundColor	@ColorInt int	Background color of checked checkbox
setCheckBoxSelectIcon	Drawable	Icon shown when checkbox is checked
setCheckBoxSelectIconTint	@ColorInt int	Tint for the checkbox select icon
setDiscardSelectionIcon	Drawable	Icon for the discard selection button
setDiscardSelectionIconTint	@ColorInt int	Tint for the discard selection icon
setSubmitSelectionIcon	Drawable	Icon for the submit selection button
setSubmitSelectionIconTint	@ColorInt int	Tint for the submit selection icon

Customization Matrix

What to change	Where	Property/API	Example
Override behavior on group interaction	Activity/Fragment	setOn<Event> callbacks	setOnItemClick((v, pos, g) -> { ... })
Filter which groups appear	Activity/Fragment	setGroupsRequestBuilder	setGroupsRequestBuilder(builder)
Customize search results	Activity/Fragment	setSearchRequestBuilder	setSearchRequestBuilder(builder)
Toggle visibility of UI elements	Activity/Fragment	set<Feature>Visibility(int)	setGroupTypeVisibility(View.GONE)
Replace a section of the list item	Activity/Fragment	set<Slot>View	setLeadingView(listener)
Change colors, fonts, spacing	themes.xml	CometChatGroupsStyle	<item name="cometchatGroupsSeparatorColor">#F76808</item>
Avatar style (corner radius, background)	themes.xml	cometchatGroupsAvatar	<item name="cometchatAvatarStrokeRadius">8dp</item>
Apply a custom style	Activity/Fragment	setStyle(int styleRes)	cometchatGroups.setStyle(R.style.CustomGroupsStyle);
Back button visibility	Activity/Fragment	setBackIconVisibility(int)	.setBackIconVisibility(View.VISIBLE);
Toolbar visibility	Activity/Fragment	setToolbarVisibility(int)	.setToolbarVisibility(View.GONE);
Error state visibility	Activity/Fragment	setErrorStateVisibility(int)	.setErrorStateVisibility(View.GONE);
Empty state visibility	Activity/Fragment	setEmptyStateVisibility(int)	.setEmptyStateVisibility(View.GONE);
Loading state visibility	Activity/Fragment	setLoadingStateVisibility(int)	.setLoadingStateVisibility(View.GONE);
Separator visibility	Activity/Fragment	setSeparatorVisibility(int)	.setSeparatorVisibility(View.GONE);
Group type indicator visibility	Activity/Fragment	setGroupTypeVisibility(int)	.setGroupTypeVisibility(View.GONE);
Selection mode (single/multiple)	Activity/Fragment	setSelectionMode(SelectionMode)	.setSelectionMode(UIKitConstants.SelectionMode.MULTIPLE);
Search keyword	Activity/Fragment	setSearchKeyword(String)	.setSearchKeyword("design");
Search box visibility	Activity/Fragment	setSearchBoxVisibility(int)	.setSearchBoxVisibility(View.GONE);
Custom toolbar title	Activity/Fragment	setTitleText(String)	.setTitleText("My Groups");
Title visibility	Activity/Fragment	setTitleVisibility(int)	.setTitleVisibility(View.GONE);
Search placeholder	Activity/Fragment	setSearchPlaceholderText(String)	.setSearchPlaceholderText("Find groups...");
Long-press options (replace)	Activity/Fragment	setOptions(Function2)	See setOptions code above
Long-press options (append)	Activity/Fragment	addOptions(Function2)	See addOptions code above
Loading view	Activity/Fragment	setLoadingView(int)	.setLoadingView(R.layout.your_loading_view);
Empty view	Activity/Fragment	setEmptyView(int)	.setEmptyView(R.layout.your_empty_view);
Error view	Activity/Fragment	setErrorView(int)	.setErrorView(R.layout.your_error_view);
Leading view (avatar area)	Activity/Fragment	setLeadingView(GroupsViewHolderListener)	See setLeadingView code above
Title view	Activity/Fragment	setTitleView(GroupsViewHolderListener)	See setTitleView code above
Trailing view	Activity/Fragment	setTrailingView(GroupsViewHolderListener)	See setTrailingView code above
Entire list item	Activity/Fragment	setItemView(GroupsViewHolderListener)	See setItemView code above
Subtitle view	Activity/Fragment	setSubtitleView(GroupsViewHolderListener)	See setSubtitleView code above
Overflow menu	Activity/Fragment	setOverflowMenu(View)	cometchatGroups.setOverflowMenu(view);
Programmatic selection	Activity/Fragment	selectGroup(Group, SelectionMode)	.selectGroup(group, SelectionMode.SINGLE);
Clear selection	Activity/Fragment	clearSelection()	.clearSelection();
Selected groups strip	Activity/Fragment	setSelectedGroupsListVisibility(int)	.setSelectedGroupsListVisibility(View.VISIBLE);
Internal adapter access	Activity/Fragment	getAdapter() / setAdapter()	Advanced use only

Accessibility

The component renders a scrollable RecyclerView of interactive group items. Each group row responds to tap and long-press gestures. Avatar images include the group name as content description. Group type indicators (public, private, password-protected) provide visual differentiation.

For custom views provided via setLeadingView, setTitleView, setTrailingView, or setItemView, ensure you set android:contentDescription on visual-only elements so TalkBack can announce them. The default views handle this automatically.

Group type status dots are visual-only by default. If screen reader descriptions are needed, provide them via a custom view with appropriate contentDescription attributes.

Next Steps

Conversations

Browse recent conversations

Users

Browse and search available users

Group Members

View and manage group members

Message List

Display messages in a conversation
